今年のネタ、今年のウチに♪
2021 最後の My New Gear...
(なんかピンぼけしてるな…)
また買ってしまった Minisforum のミニ PC EtlieMini HM90。
今回はベアボーンモデルということで、ESXi 用途としては更にお得に。
(セール特価で 55,590 JPY)
Minisforum EliteMini HM90store.minisforum.jp
基本スペック
| コンポーネント | スペック値 |
|---|---|
| 製品名 | MINISFORUM EliteMini HM90 |
| CPU | Ryzen9 4900H 8c/16t |
| Memory | (ベアボーン) |
| GPU | AMD Radeon™ Graphics (1750MHz) |
| Disk | (ベアボーン) |
| 拡張Disk | 2.5inch SATA 3.0 スロット x 2 |
| NIC | M.2 2230 WI-Fi6 / 2.5Gbps NIC / 1Gbps NIC |
| 電源 | Type-C 給電 DC19V/6.3A (≒120W) |
| 本体サイズ | 149.6 x 149.6 x 55.5mm |
HM80 比で Ryzen7 4700U → Ryzen9 4900H になったのが大きな変更点。
というか、本当にそれぐらいでは？
(ベアボーンモデルが出たというのは大きい)
外観
HM80 と並べて。IF もサイズ感も全く同じ。
梱包物、電源がゴツくなりましたね…
HM80 のレポは ↓ 参照 vhoge.hateblo.jp
個別調達品
今回はベアボーンということで、メモリと Disk(NVMe) は別調達。
丁度 Amazon のブラックフライデー時期だったのでそこから適当に安いものを。
- x 2
- 12,610 x 2 = 25,220 JPY
-
- 4,999 JPY
また、それらとは別に自宅で余っていた SATA SSD(CT500MX500SSD1)も載せる。
余談：メモリ2枚モデル？ メモリ1枚モデル x 2？
今回は 1 枚モデル 2 個買いというトリッキーな買い方。
メモリは基本的にデュアルチャンネルで使うため、2 枚 1 組が基本。
そこで変に相性問題で出ないように製造ロットを確実に合わせるということで、2 枚モデルを買うのが推奨というか一般的。
価格もほとんど変わらないし (2 枚の方が安い場合も)
が今回、見ていると価格差が…ということで敢えての 1枚モデル 2 個買い。
同じお店から同時で 2枚買いするのであればロットがずれる可能性は低いし、その昔に比べて地雷メモリも大分淘汰されたので、そこまでのリスクは無い…と判断。
実際シリアルは連番で特に問題は無く動いているのでひとまずは好判断かな。
半導体不足で色々入手が不安定な昨今。一事例としてご参考までに。
装着

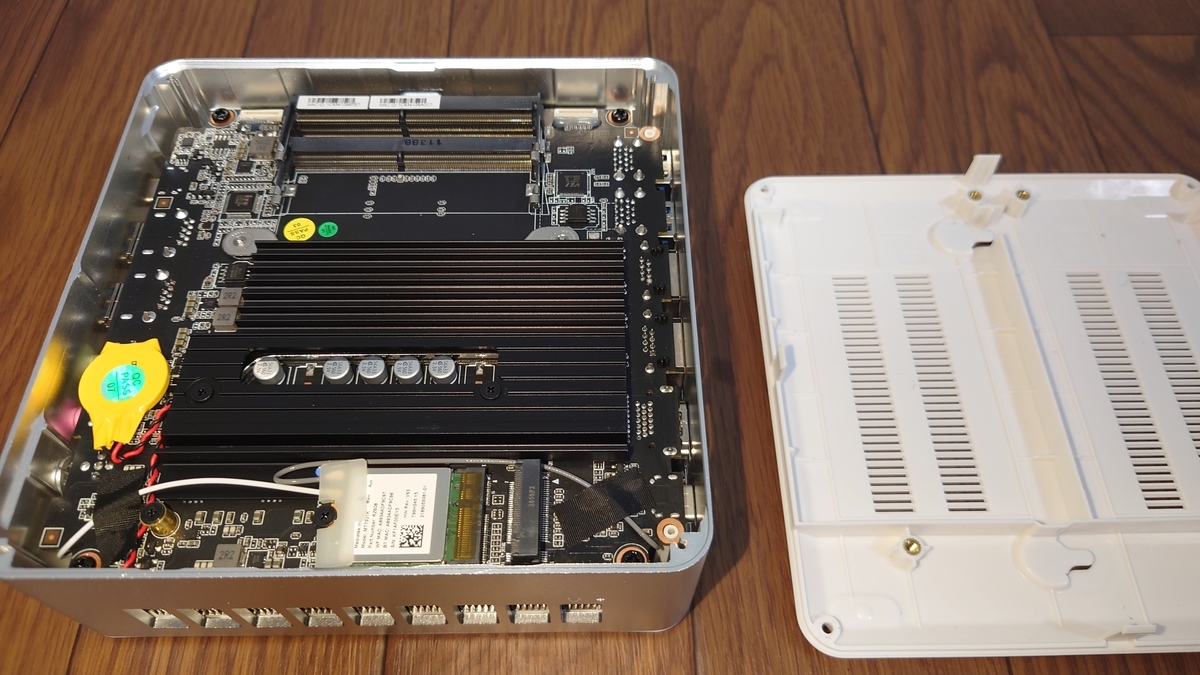

背面のネジを外してケースを開く。

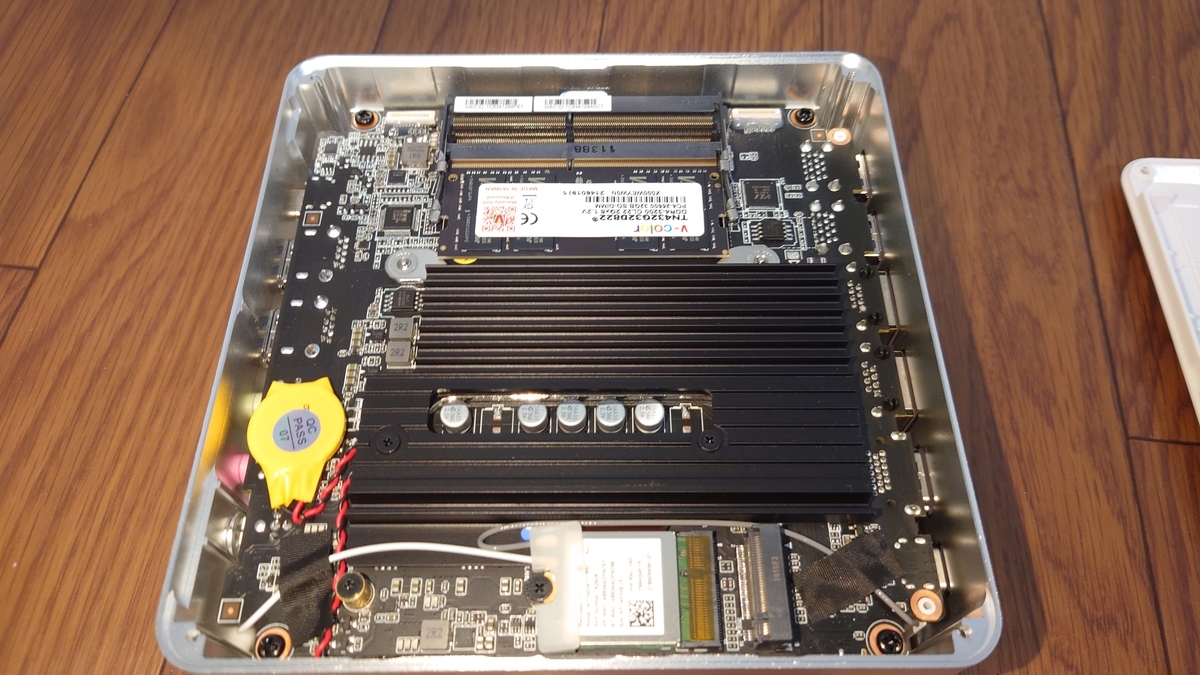

メモリは斜めに入れ、スロットに入ったら上から押しこみ両サイドの留め具をハメる。

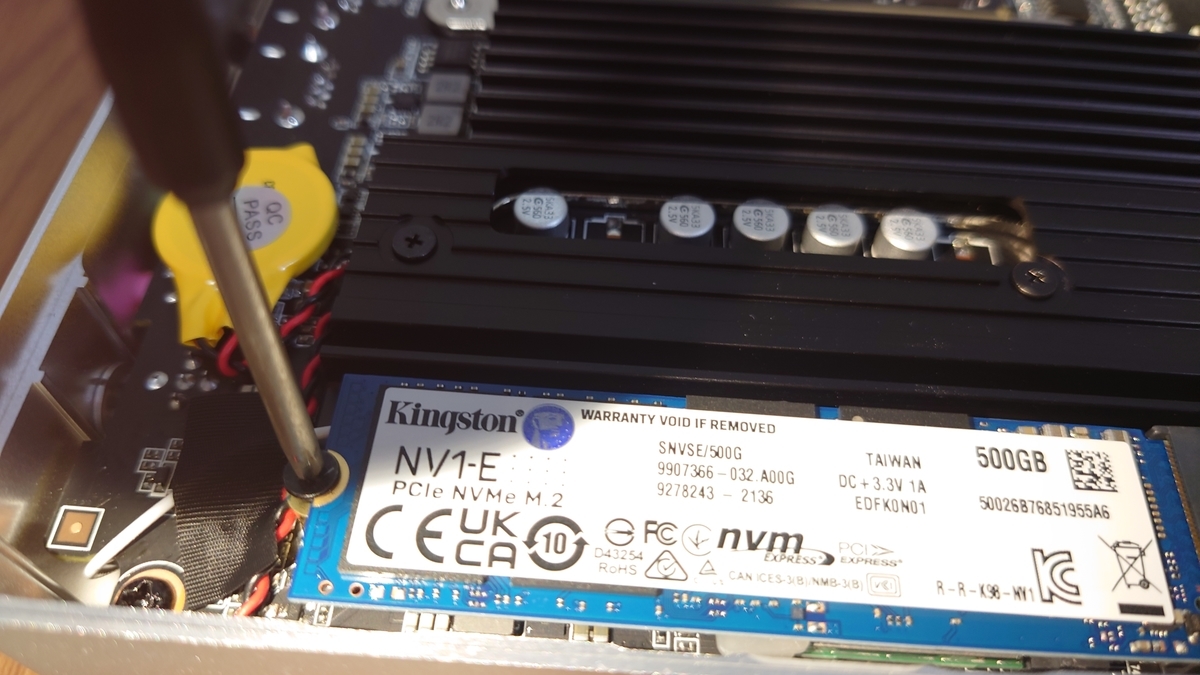

M.2 はネジを外し、メモリ同様に斜めに入れネジを留めなおす。

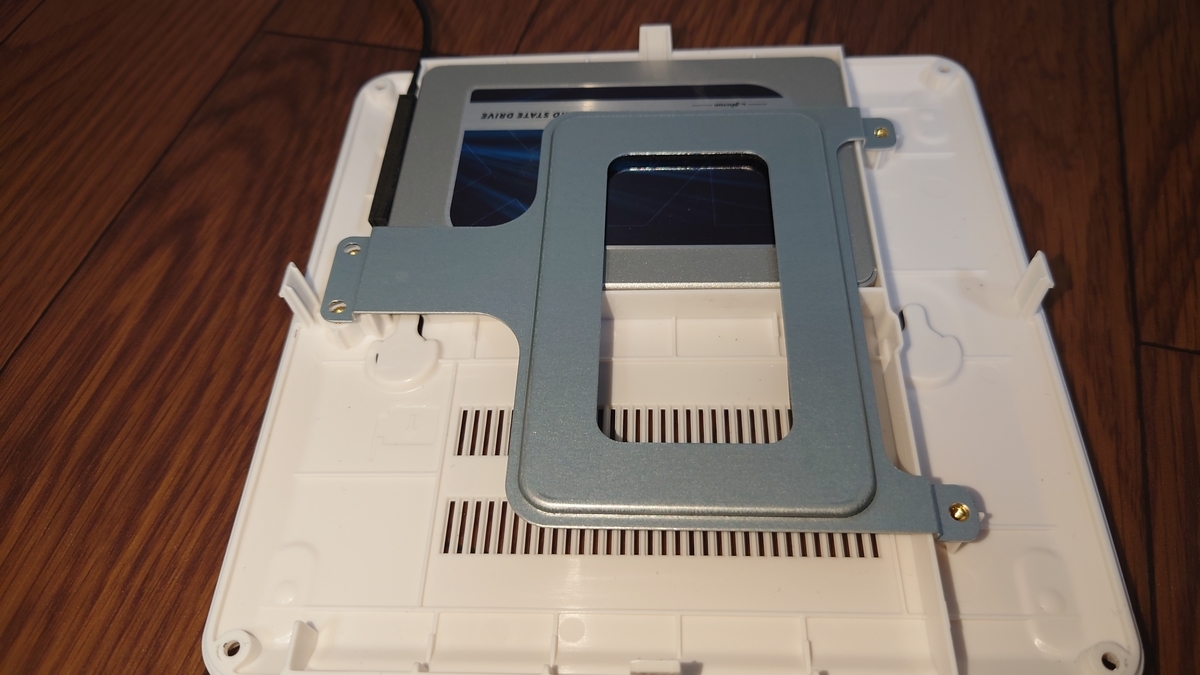

SATA SSD は背面に置き、カバーを取りつけ同梱ケーブルで配線。
ESXi をインストール
と、ここまで書いてきましたが、実は Hirotaka Sato(@hirotaka0426) さんのもとには一足お先に製品が到着しており、レポを投稿してくれていますので、インストール自体は勝ち馬に乗るだけ。
(M.2 NVMe を認識してくれるかはありますが…)
qiita.com
I225-V なので、HM80 の時のインストールイメージをそのまま利用。
うぇーい
ESXi から見る

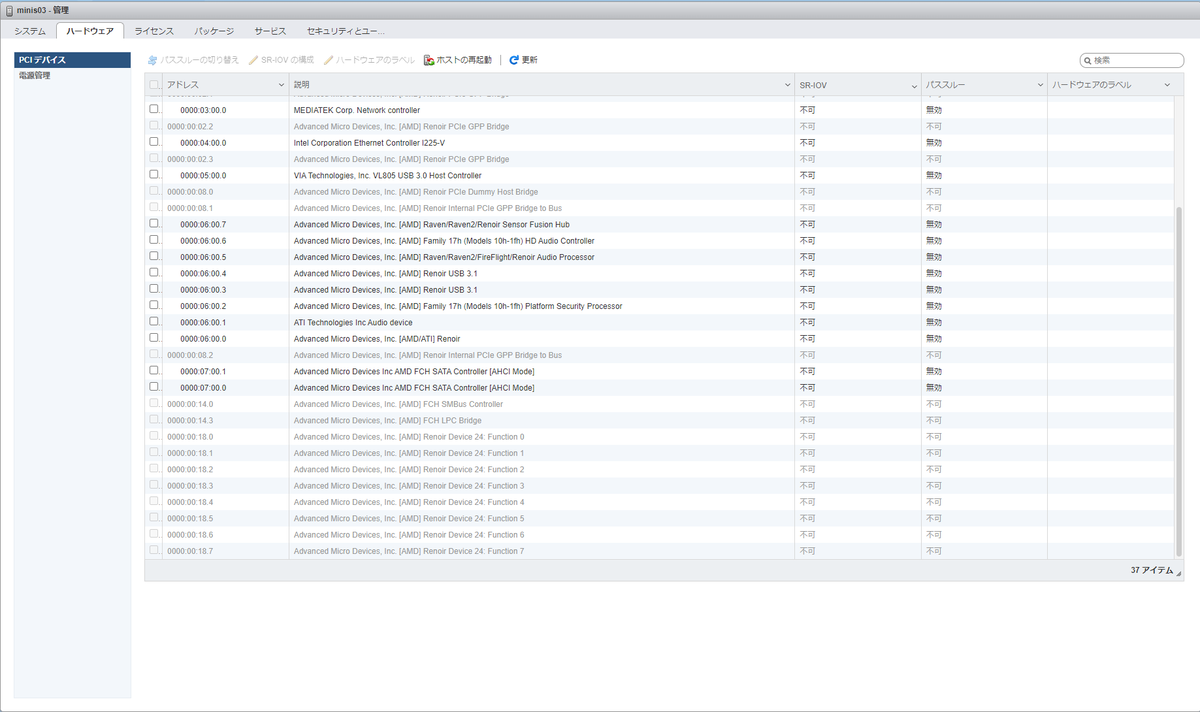

デバイス。あれ、HM80 だと見えた M.2 2230 Wi-FI が見えない…？

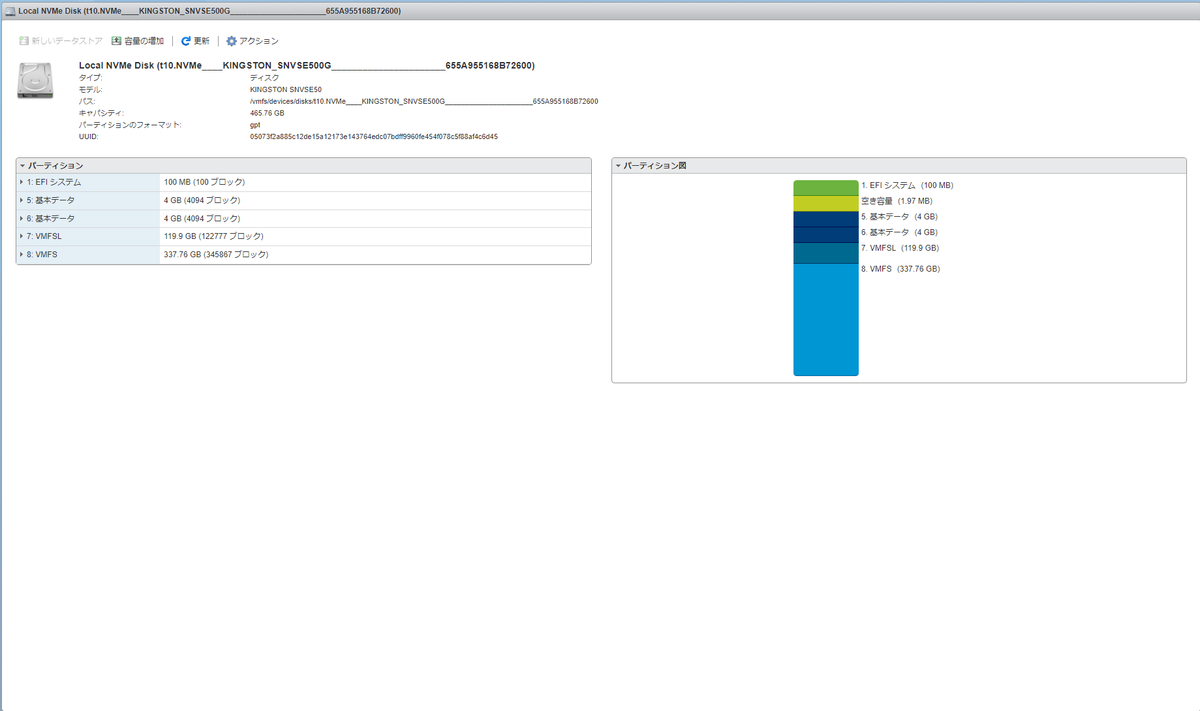

ディスクまわり

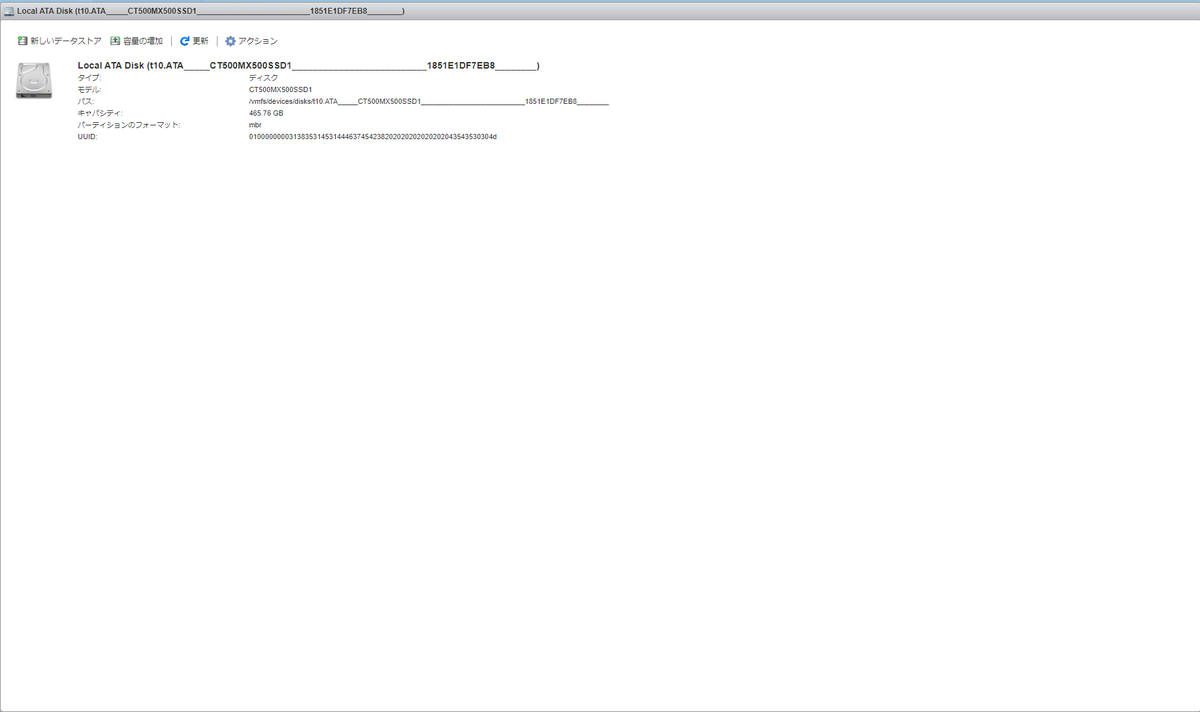

SATA SSD はまだ未フォーマット。
NIC はレポ通り I225-V (+Realtek)。
上級者用
HM80 と同じように ESXi 上で CLI を叩く。
esxcli hardware hoge
[root@minis03:~] esxcli hardware cpu list CPU:0 Id: 0 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x0 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:1 Id: 1 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x1 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:2 Id: 2 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x2 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:3 Id: 3 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x3 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:4 Id: 4 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x4 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:5 Id: 5 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x5 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:6 Id: 6 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x6 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:7 Id: 7 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x7 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:8 Id: 8 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x8 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:9 Id: 9 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0x9 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:10 Id: 10 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0xa Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:11 Id: 11 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0xb Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:12 Id: 12 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0xc Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:13 Id: 13 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0xd Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:14 Id: 14 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0xe Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:15 Id: 15 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 3293811384 Bus Speed: 99812410 APIC ID: 0xf Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 [root@minis03:~] esxcli hardware memory get Physical Memory: 68096290816 Bytes Reliable Memory: 0 Bytes NUMA Node Count: 1 [root@minis03:~] esxcli hardware platform get Platform Information UUID: 0x3 0x0 0x2 0x0 0x4 0x0 0x5 0x0 0x0 0x6 0x0 0x7 0x0 0x8 0x0 0x9 Product Name: HM90 Vendor Name: BESSTAR TECH LIMITED Serial Number: Default string Enclosure Serial Number: Default string BIOS Asset Tag: Default string IPMI Supported: false
esxcli network nic list
[root@minis03:~] esxcli network nic list Name PCI Device Driver Admin Status Link Status Speed Duplex MAC Address MTU Description ------ ------------ ------------- ------------ ----------- ----- ------ ----------------- ---- ----------- vmnic0 0000:04:00.0 igc-community Up Up 1000 Full 1c:83:41:29:9f:e7 1500 Intel Corporation Ethernet Controller I225-V
esxcli storage core hoge
[root@minis03:~] esxcli storage core device list t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600 Display Name: Local NVMe Disk (t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600) Has Settable Display Name: false Size: 476940 Device Type: Direct-Access Multipath Plugin: HPP Devfs Path: /vmfs/devices/disks/t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600 Vendor: NVMe Model: KINGSTON SNVSE50 Revision: EDFK SCSI Level: 7 Is Pseudo: false Status: on Is RDM Capable: false Is Local: true Is Removable: false Is SSD: true Is VVOL PE: false Is Offline: false Is Perennially Reserved: false Queue Full Sample Size: 0 Queue Full Threshold: 0 Thin Provisioning Status: yes Attached Filters: VAAI Status: unsupported Other UIDs: vml.05073f2a885c12de15a12173e143764edc07bdff9960fe454f078c5f88af4c6d45 Is Shared Clusterwide: false Is SAS: false Is USB: false Is Boot Device: true Device Max Queue Depth: 1023 No of outstanding IOs with competing worlds: 32 Drive Type: physical RAID Level: NA Number of Physical Drives: 1 Protection Enabled: false PI Activated: false PI Type: 0 PI Protection Mask: NO PROTECTION Supported Guard Types: NO GUARD SUPPORT DIX Enabled: false DIX Guard Type: NO GUARD SUPPORT Emulated DIX/DIF Enabled: false t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________ Display Name: Local ATA Disk (t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________) Has Settable Display Name: false Size: 476940 Device Type: Direct-Access Multipath Plugin: HPP Devfs Path: /vmfs/devices/disks/t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________ Vendor: ATA Model: CT500MX500SSD1 Revision: 023 SCSI Level: 5 Is Pseudo: false Status: on Is RDM Capable: false Is Local: true Is Removable: false Is SSD: true Is VVOL PE: false Is Offline: false Is Perennially Reserved: false Queue Full Sample Size: 0 Queue Full Threshold: 0 Thin Provisioning Status: yes Attached Filters: VAAI Status: unsupported Other UIDs: vml.0100000000313835314531444637454238202020202020202043543530304d Is Shared Clusterwide: false Is SAS: false Is USB: false Is Boot Device: false Device Max Queue Depth: 31 No of outstanding IOs with competing worlds: 31 Drive Type: unknown RAID Level: unknown Number of Physical Drives: unknown Protection Enabled: false PI Activated: false PI Type: 0 PI Protection Mask: NO PROTECTION Supported Guard Types: NO GUARD SUPPORT DIX Enabled: false DIX Guard Type: NO GUARD SUPPORT Emulated DIX/DIF Enabled: false [root@minis03:~] esxcli storage core adapter list HBA Name Driver Link State UID Capabilities Description -------- --------- ---------- ----------- ------------ ----------- vmhba0 vmw_ahci link-n/a sata.vmhba0 (0000:07:00.0) Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] vmhba1 vmw_ahci link-n/a sata.vmhba1 (0000:07:00.1) Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] vmhba2 nvme_pcie link-n/a pcie.100 (0000:01:00.0) Kingston Technology Company, Inc. <class> Non-Volatile memory controller
esxcfg-scsidevs -l
[root@minis03:~] esxcfg-scsidevs -l t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________ Device Type: Direct-Access Size: 476940 MB Display Name: Local ATA Disk (t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________) Multipath Plugin: HPP Console Device: /vmfs/devices/disks/t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________ Devfs Path: /vmfs/devices/disks/t10.ATA_____CT500MX500SSD1__________________________1851E1DF7EB8________ Vendor: ATA Model: CT500MX500SSD1 Revis: 023 SCSI Level: 5 Is Pseudo: false Status: on Is RDM Capable: false Is Removable: false Is Local: true Is SSD: true Other Names: vml.0100000000313835314531444637454238202020202020202043543530304d VAAI Status: unsupported t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600 Device Type: Direct-Access Size: 476940 MB Display Name: Local NVMe Disk (t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600) Multipath Plugin: HPP Console Device: /vmfs/devices/disks/t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600 Devfs Path: /vmfs/devices/disks/t10.NVMe____KINGSTON_SNVSE500G______________________655A955168B72600 Vendor: NVMe Model: KINGSTON SNVSE50 Revis: EDFK SCSI Level: 7 Is Pseudo: false Status: on Is RDM Capable: false Is Removable: false Is Local: true Is SSD: true Other Names: vml.05073f2a885c12de15a12173e143764edc07bdff9960fe454f078c5f88af4c6d45 vml.0100000000363535415f393535315f363842375f32363030004b494e475354 VAAI Status: unsupported
lspci -vvv
[root@minis03:~] lspci -vvv 0000:00:00.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Root Complex Class 0600: 1022:1630 0000:00:00.2 Generic system peripheral IOMMU: Advanced Micro Devices, Inc. [AMD] Renoir IOMMU Class 0806: 1022:1631 0000:00:01.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge Class 0600: 1022:1632 0000:00:01.2 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:01.2]] Class 0604: 1022:1634 0000:00:01.3 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:01.3]] Class 0604: 1022:1634 0000:00:02.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge Class 0600: 1022:1632 0000:00:02.1 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:02.1]] Class 0604: 1022:1634 0000:00:02.2 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:02.2]] Class 0604: 1022:1634 0000:00:02.3 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:02.3]] Class 0604: 1022:1634 0000:00:08.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge Class 0600: 1022:1632 0000:00:08.1 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir Internal PCIe GPP Bridge to Bus [PCIe RP[0000:00:08.1]] Class 0604: 1022:1635 0000:00:08.2 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir Internal PCIe GPP Bridge to Bus [PCIe RP[0000:00:08.2]] Class 0604: 1022:1635 0000:00:14.0 Serial bus controller SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller Class 0c05: 1022:790b 0000:00:14.3 Bridge ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge Class 0601: 1022:790e 0000:00:18.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 0 Class 0600: 1022:1448 0000:00:18.1 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 1 Class 0600: 1022:1449 0000:00:18.2 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 2 Class 0600: 1022:144a 0000:00:18.3 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 3 Class 0600: 1022:144b 0000:00:18.4 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 4 Class 0600: 1022:144c 0000:00:18.5 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 5 Class 0600: 1022:144d 0000:00:18.6 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 6 Class 0600: 1022:144e 0000:00:18.7 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 7 Class 0600: 1022:144f 0000:01:00.0 Mass storage controller Non-Volatile memory controller: Kingston Technology Company, Inc. Device 500e [vmhba2] Class 0108: 2646:500e 0000:02:00.0 Network controller Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller Class 0200: 10ec:8168 0000:03:00.0 Network controller Network controller: MEDIATEK Corp. Device 0608 Class 0280: 14c3:0608 0000:04:00.0 Network controller Ethernet controller: Intel Corporation Ethernet Controller I225-V [vmnic0] Class 0200: 8086:15f3 0000:05:00.0 Serial bus controller USB controller: VIA Technologies, Inc. VL805 USB 3.0 Host Controller Class 0c03: 1106:3483 0000:06:00.0 Display controller VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Renoir Class 0300: 1002:1636 0000:06:00.1 Multimedia controller Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device 1637 Class 0403: 1002:1637 0000:06:00.2 Encryption controller Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) Platform Security Processor Class 1080: 1022:15df 0000:06:00.3 Serial bus controller USB controller: Advanced Micro Devices, Inc. [AMD] Renoir USB 3.1 Class 0c03: 1022:1639 0000:06:00.4 Serial bus controller USB controller: Advanced Micro Devices, Inc. [AMD] Renoir USB 3.1 Class 0c03: 1022:1639 0000:06:00.5 Multimedia controller Multimedia controller: Advanced Micro Devices, Inc. [AMD] Raven/Raven2/FireFlight/Renoir Audio Processor Class 0480: 1022:15e2 0000:06:00.6 Multimedia controller Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) HD Audio Controller Class 0403: 1022:15e3 0000:06:00.7 Signal processing controller Signal processing controller: Advanced Micro Devices, Inc. [AMD] Raven/Raven2/Renoir Sensor Fusion Hub Class 1180: 1022:15e4 0000:07:00.0 Mass storage controller SATA controller: Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] [vmhba0] Class 0106: 1022:7901 0000:07:00.1 Mass storage controller SATA controller: Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] [vmhba1] Class 0106: 1022:7901
smbiosDump
[root@minis03:~] smbiosDump Dumping live SMBIOS data! BIOS Info (Type 0): #0 Size: 0x0001a Vendor: "American Megatrends Inc." Version: "5.16" Date: "10/13/2021" Start Address: 0xf0000 ROM Size: 16384 kB Features: 0x0d03000000013f8b9880 PCI supported BIOS flashable BIOS shadowing allowed CD boot supported Selectable boot supported BIOS ROM socketed EDD spec supported 1.2MB Floppy supported 720kB Floppy supported 2.88MB Floppy supported Print Screen supported 8042 Keyboard Services supported Serial Services supported Printer Services supported ACPI supported USB Legacy supported BIOS Boot Spec supported Enable targeted content distribution UEFI supported System BIOS release: 5.16 System Info (Type 1): #1 Manufacturer: "BESSTAR TECH LIMITED" Product: "HM90" Version: "Default string" Serial: "Default string" SKU: "Default string" Family: "Default string" UUID: 09000800070006000500040003000200 Wake-up: 0x06 (Power Switch) Baseboard Info (Type 2): #2 Manufacturer: "BESSTAR TECH LIMITED" Product: "HM90" Version: "Default string" Serial: "Default string" Asset Tag: "Default string" Type: 0x0a (Motherboard) Features: 0x09 Hosting Board Replaceable Location: "Default string" Chassis: #3 Chassis Info (Type 3): #3 Manufacturer: "Default string" Version: "Default string" Serial: "Default string" Asset Tag: "Default string" Type: 0x03 (Desktop) Bootup State: 0x03 (Safe) Power Supply State: 0x03 (Safe) Thermal State: 0x03 (Safe) Security Status: 0x03 (None) Power Cords: 1 SKU: "Default string" Onboard Devices (Type 10): #4 Video: "To Be Filled By O.E.M." OEM Strings (Type 11): #5 Default string System Config Options (Type 12) #6: Default string Type 32 Record: #7 Data 00: 20 14 07 00 00 00 00 00 00 00 00 00 00 00 00 00 Data 10: 00 00 00 00 Type 43 Record: #8 Data 00: 2b 1f 08 00 41 4d 44 00 02 00 2f 00 03 00 05 00 Data 10: 00 00 02 10 00 00 00 00 00 00 00 00 00 00 00 String 1: "TPM 2.0" String 2: "AMD" 32bit-Memory Error Info (Type 18): #9 Type: 0x03 (OK) Granularity: 0x02 (Unknown) Operation: 0x02 (Unknown) Physical Memory Array (Type 16): #10 Use: 0x03 (System memory) Location: 0x03 (Motherboard) Slots: 2 Max. Size: 32 GB ECC: 0x03 (None) Error Info: #9 Memory Array Mapping (Type 19): #11 Memory Array: #10 Partition Width: 2 Start Address: 0x0000000000000000 End Address: 0x0000001000000000 Cache Info (Type 7): #12 Designation: "L1 - Cache" Level: L1 State: Enabled Mode: 0x01 (Write Back) Location: 0x00 (Internal, Not Socketed) ECC: 0x06 (Multi-bit) Type: 0x05 (Unified) Associativity: 0x07 (8-way Set-Associative) Max. Size: 512 kB Current Size: 512 kB Speed: 1 ns Supported SRAM Types: 0x0010 (Pipeline Burst) Current SRAM Type: 0x0010 (Pipeline Burst) Cache Info (Type 7): #13 Designation: "L2 - Cache" Level: L2 State: Enabled Mode: 0x01 (Write Back) Location: 0x00 (Internal, Not Socketed) ECC: 0x06 (Multi-bit) Type: 0x05 (Unified) Associativity: 0x07 (8-way Set-Associative) Max. Size: 4096 kB Current Size: 4096 kB Speed: 1 ns Supported SRAM Types: 0x0010 (Pipeline Burst) Current SRAM Type: 0x0010 (Pipeline Burst) Cache Info (Type 7): #14 Designation: "L3 - Cache" Level: L3 State: Enabled Mode: 0x01 (Write Back) Location: 0x00 (Internal, Not Socketed) ECC: 0x06 (Multi-bit) Type: 0x05 (Unified) Associativity: 0x08 (16-way Set-Associative) Max. Size: 8192 kB Current Size: 8192 kB Speed: 1 ns Supported SRAM Types: 0x0010 (Pipeline Burst) Current SRAM Type: 0x0010 (Pipeline Burst) Processor Info (Type 4): #15 Payload length: 0x30 Socket: "FP6" Socket Type: 0x06 (None) Socket Status: Populated Type: 0x03 (CPU) Family: 0x6b (Zen) Manufacturer: "Advanced Micro Devices, Inc." Version: "AMD Ryzen 9 4900H with Radeon Graphics" Serial: "Unknown" Asset Tag: "Unknown" Part Number: "Unknown" Processor ID: 0x178bfbff00860f01 Status: 0x01 (Enabled) Voltage: 1.2 V External Clock: 100 MHz Max. Speed: 4450 MHz Current Speed: 3300 MHz L1 Cache: #12 L2 Cache: #13 L3 Cache: #14 Core Count: 8 Core Enabled Count: 8 Thread Count: 16 Characteristics: 0x00fc (64-bit Capable, Multi-Core, Hardware Thread, Execute Protection, Enhanced Virtualization, Power/Performance Control) 32bit-Memory Error Info (Type 18): #16 Type: 0x03 (OK) Granularity: 0x02 (Unknown) Operation: 0x02 (Unknown) Memory Device (Type 17): #17 Location: "DIMM 0" Bank: "P0 CHANNEL A" Manufacturer: "Unknown" Serial: "00000000" Part Number: "TN432G32D822" Memory Array: #10 Error Info: #16 Form Factor: 0x0d (SODIMM) Type: 0x1a (DDR4) Type Detail: 0x4080 (Synchronous, Unregistered) Data Width: 64 bits Size: 32 GB Max. Speed: 3200 MT/s Rank: 2 Configured Speed: 3200 MT/s Min. Voltage: 1200 mV Max. Voltage: 1200 mV Configured Voltage: 1200 mV Technology: 0x03 (DRAM) Mode Capability: 0x0008 (Volatile) Firmware Version: "Unknown" Module Manufacturer ID: 0x6d06 Volatile Size: 34359738368 bytes Memory Device Mapping (Type 20): #18 Memory Device: #17 Array Mapping: #11 Start Address: 0x0000000000000000 End Address: 0x0000001000000000 32bit-Memory Error Info (Type 18): #19 Type: 0x03 (OK) Granularity: 0x02 (Unknown) Operation: 0x02 (Unknown) Memory Device (Type 17): #20 Location: "DIMM 0" Bank: "P0 CHANNEL B" Manufacturer: "Unknown" Serial: "00000000" Part Number: "TN432G32D822" Memory Array: #10 Error Info: #19 Form Factor: 0x0d (SODIMM) Type: 0x1a (DDR4) Type Detail: 0x4080 (Synchronous, Unregistered) Data Width: 64 bits Size: 32 GB Max. Speed: 3200 MT/s Rank: 2 Configured Speed: 3200 MT/s Min. Voltage: 1200 mV Max. Voltage: 1200 mV Configured Voltage: 1200 mV Technology: 0x03 (DRAM) Mode Capability: 0x0008 (Volatile) Firmware Version: "Unknown" Module Manufacturer ID: 0x6d06 Volatile Size: 34359738368 bytes Memory Device Mapping (Type 20): #21 Memory Device: #20 Array Mapping: #11 Start Address: 0x0000000000000000 End Address: 0x0000001000000000 Port Connector (Type 8): #22 Type: 0x0d (Keyboard Port) Internal Designator: "J2304/J2300" External Designator: "Keyboard" External Connector: 0x0f (PS/2) Port Connector (Type 8): #23 Type: 0x0e (Mouse Port) Internal Designator: "J3811" External Designator: "Touch pad" External Connector: 0x0f (PS/2) Port Connector (Type 8): #24 Type: 0x10 (USB) Internal Designator: "J1504" External Designator: "USB 3.0" External Connector: 0x12 (Access Bus [USB]) Port Connector (Type 8): #25 Type: 0x10 (USB) Internal Designator: "J1500" External Designator: "USB 3.1" External Connector: 0x12 (Access Bus [USB]) Port Connector (Type 8): #26 Type: 0x10 (USB) Internal Designator: "J1502" External Designator: "USB 3.1" External Connector: 0x12 (Access Bus [USB]) Port Connector (Type 8): #27 Type: 0x10 (USB) Internal Designator: "J1501" External Designator: "USB 3.1 Type-C" External Connector: 0x12 (Access Bus [USB]) Port Connector (Type 8): #28 Type: 0x10 (USB) Internal Designator: "J1503" External Designator: "USB 3.1 Type-C" External Connector: 0x12 (Access Bus [USB]) Port Connector (Type 8): #29 Type: 0x1f (Network Port) Internal Designator: "J1300" External Designator: "Network" External Connector: 0x0b (RJ-45) Port Connector (Type 8): #30 Type: 0x20 (SATA) Internal Designator: "J1701" Internal Connector: 0x22 (SAS/SATA Plug Receptacle) External Designator: "Sata HDD" Port Connector (Type 8): #31 Type: 0x20 (SATA) Internal Designator: "J1703" Internal Connector: 0x22 (SAS/SATA Plug Receptacle) External Designator: "Sata ODD" Port Connector (Type 8): #32 Type: 0x1c (Video Port) Internal Designator: "J1101" External Designator: "DP0" Port Connector (Type 8): #33 Type: 0x1c (Video Port) Internal Designator: "J1100" External Designator: "DP1" Port Connector (Type 8): #34 Type: 0x1d (Audio Port) Internal Designator: "J2103" External Designator: "Microphone" External Connector: 0x1f (Mini-jack [headphones]) Port Connector (Type 8): #35 Type: 0x1d (Audio Port) Internal Designator: "J2105" External Designator: "Headphone" External Connector: 0x1f (Mini-jack [headphones]) System Slot (Type 9): #36 Designation: "J3604" Type: 0xa9 (PCI Express x8) Bus Width: 0x0b (x8) Status: 0x03 (Available) Length: 0x03 (Short) Slot ID: 1 Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug) PCI Address: 0200:00:01.1 System Slot (Type 9): #37 Designation: "J3711" Type: 0x15 (M.2 Socket 1-SD [Mechanical Key E]) Bus Width: 0x08 (x1) Status: 0x04 (In Use) Length: 0x03 (Short) Slot ID: 3 Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug) PCI Address: 0000:00:01.2 System Slot (Type 9): #38 Designation: "J3704" Type: 0x17 (M.2 Socket 3 [Mechanical Key M]) Bus Width: 0x09 (x2) Status: 0x03 (Available) Length: 0x03 (Short) Slot ID: 5 Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug) PCI Address: 0200:00:01.7 System Slot (Type 9): #39 Designation: "J3709" Type: 0x15 (M.2 Socket 1-SD [Mechanical Key E]) Bus Width: 0x08 (x1) Status: 0x03 (Available) Length: 0x03 (Short) Slot ID: 6 Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug) PCI Address: 0200:00:01.5 Onboard Device (Type 41): #40 Designation: "Onboard LAN Brodcom" Status: Enabled Type: 0x05 (Ethernet) Instance: 0x01 PCI Address: 0000:02:00.0 Onboard Device (Type 41): #41 Designation: "HD Audio Controller" Status: Enabled Type: 0x07 (Sound) Instance: 0x01 PCI Address: 0000:06:00.6 Language Info (Type 13): #42 Languages: en|US|iso8859-1 Current: en|US|iso8859-1
まとめ
HM80 でも誤家庭向け ESXi 機としてはかなりコスパ良いモデルと思っていましたが、CPU が強化されベアボーンも選べる HM90 は誤家庭 ESXi 機としてはコスパ最強なのでは？と思える仕上がり。
初心者向けには NUC と言うのは揺るぎないですが、ほぼノートラブルで、現状 NUC ではできない 8c/16t を満たせる辺り、コレもかなりオススメできる一品かと。
