昨日の続き、MINISFORUM EliteMini HM80 に ESXi をインストールしてみる。 vhoge.hateblo.jp
OS イメージ

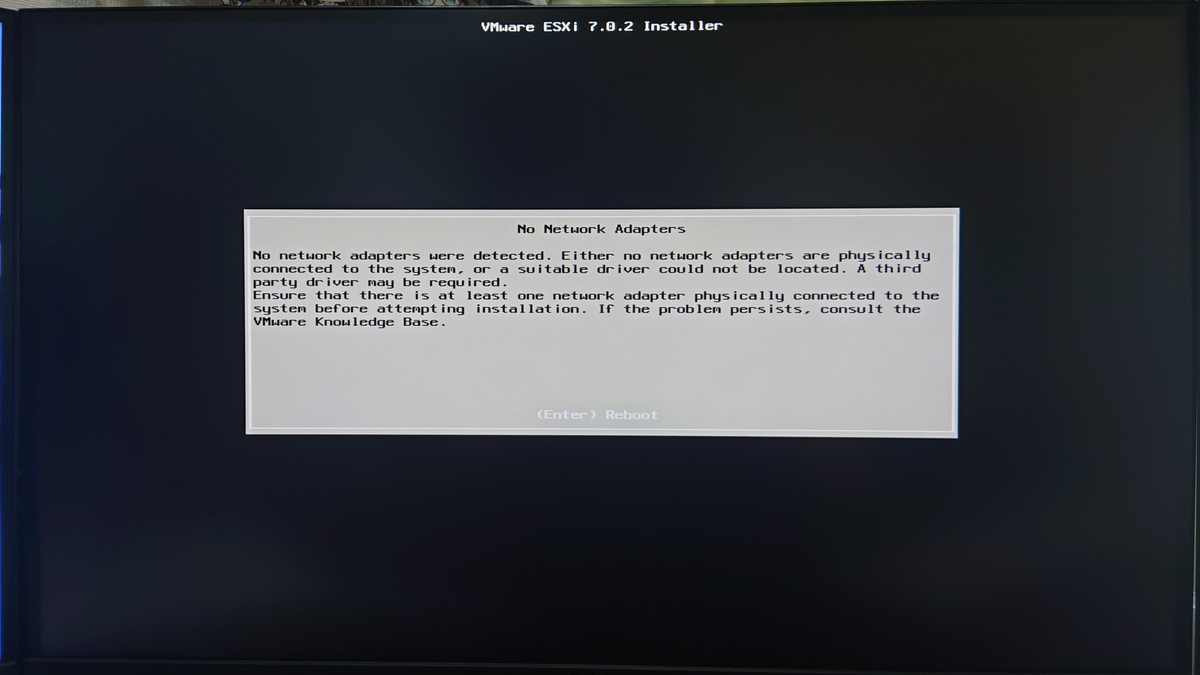

8/7 現在最新の ESXi 7.0u2 をそのまま入れると NIC ドライバが無く、インストールが途中でコケる。
(最初は I225-V 載ってるのを知らず、USB-NIC でいくつもりだったけど、そちらもデフォだと入ってないのね…)
というわけで、I225-V のコミュニティドライバである igb-community (とついでに USB-NIC も) を突っ込んだカスタムイメージを作り、それを使ってインストールする。
カスタムイメージの作り方は昔の記事参考。
ちなみに VMware.ImageBuilder は core 対応しておらず、最近の PowerShell はデフォだと Core 版が立ち上がるので、旧版に切り替える必要あり。
ESXi から見る

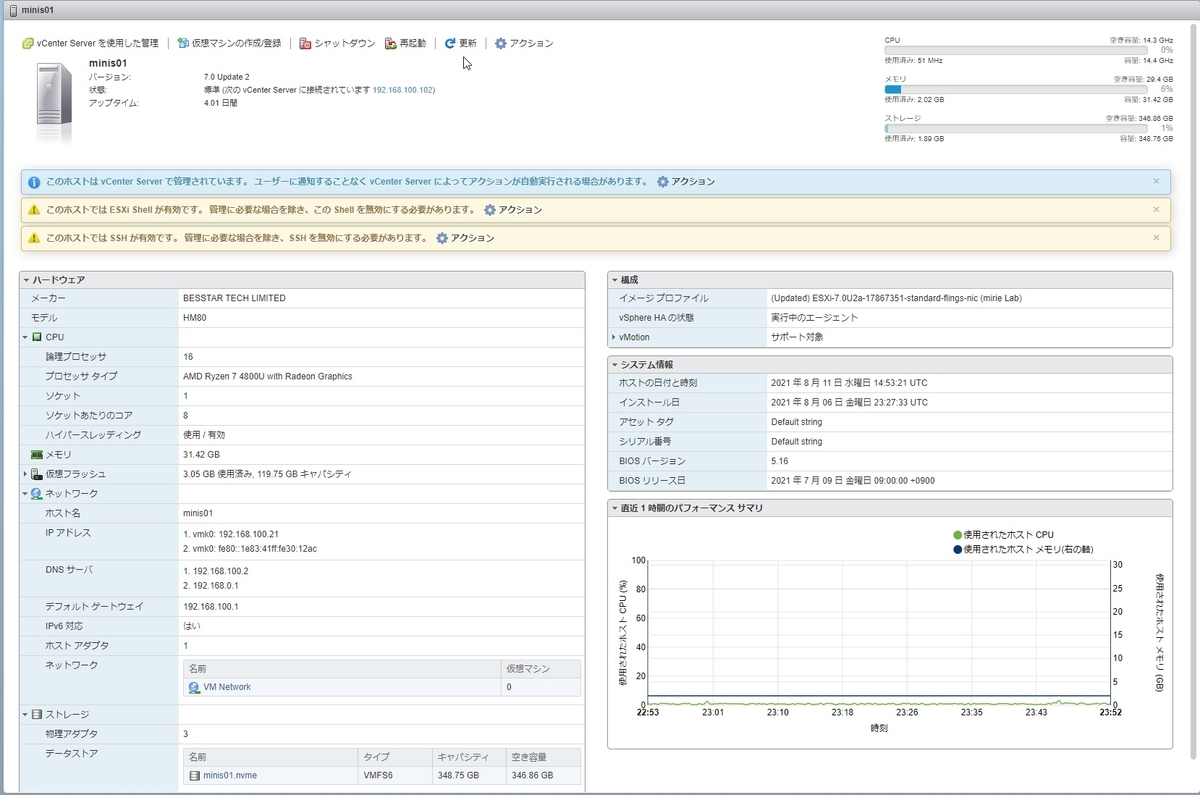

HostClient から。
まぁ、OS が変わっただけでハード自体は同じなので特に違いは無いですが…
にしても 8 core 表示は見ていて満足度が高い。

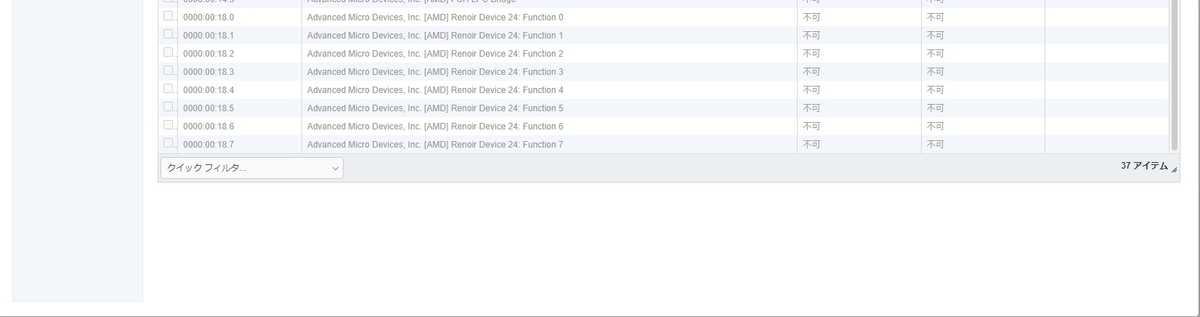

使えるかはさておき、Intel Wi-Fi-6 AX200 (M.2 2230) は出てくるんですね。

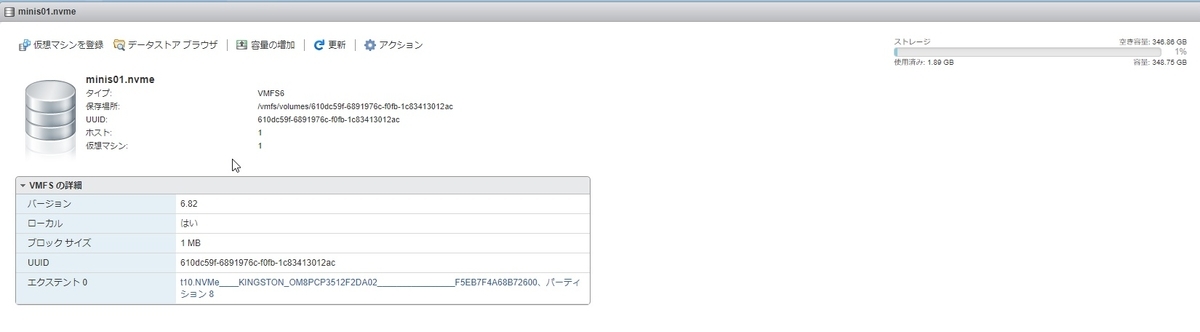

NVMe データストア
autoPartitionOSDataSize はいじってないので約 128GB は ESXi 領域にとられている状態。

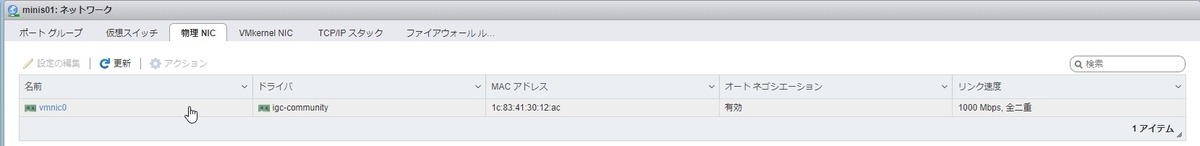

物理 NIC (USB-NIC は挿していない状態)。
デュアル NIC で Realtek もあるが、案の定そちらは認識せず。
I225-V もハード的には 2.5Gbps だけど、対向スイッチが 1Gbps なので 1000 Mbps…に。

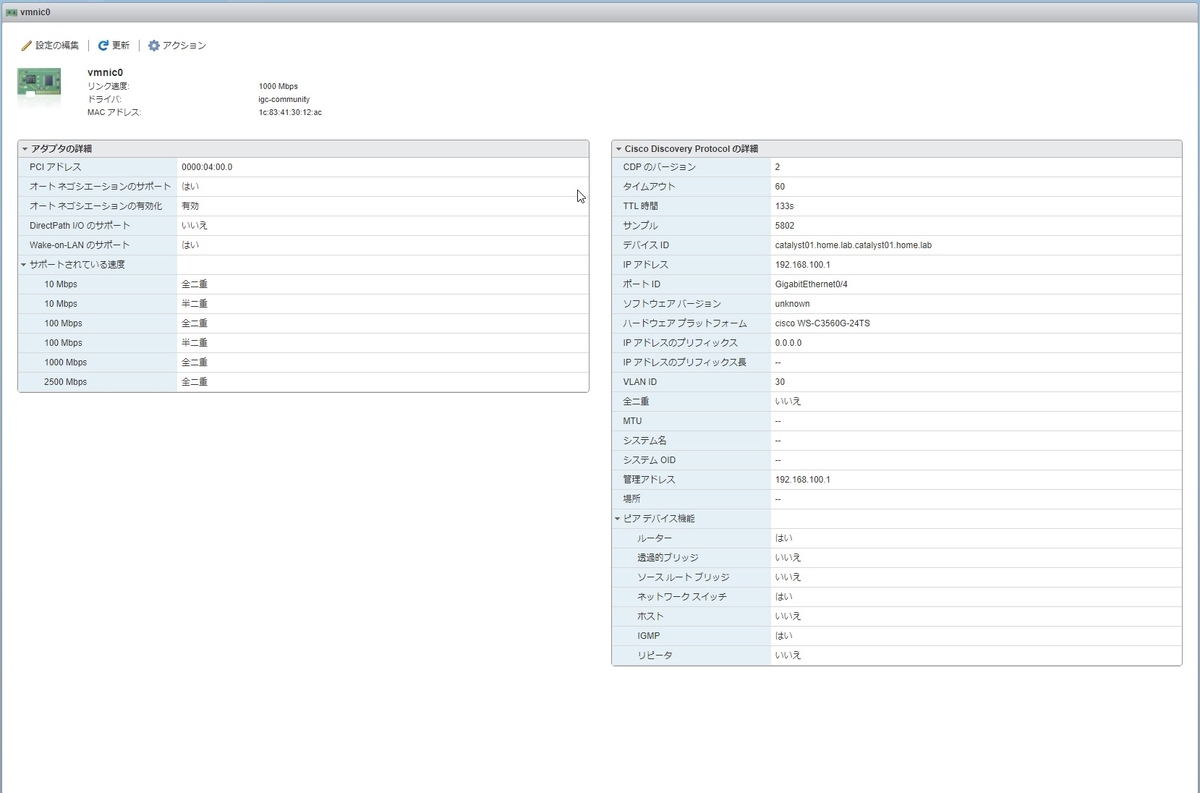

こちらで見ると 2500 Mbps も見えますね。
上級者用
コマンドのメモ代わりに CLI からハード情報を取ってみる。
ちなみにesxcfg-info の結果は貼るとブラウザ死ぬので割愛…
esxcli hardware hoge
[root@minis01:~] esxcli hardware cpu list CPU:0 Id: 0 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x0 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:1 Id: 1 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x1 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:2 Id: 2 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x2 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:3 Id: 3 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x3 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:4 Id: 4 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x4 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:5 Id: 5 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x5 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:6 Id: 6 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x6 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:7 Id: 7 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x7 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:8 Id: 8 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x8 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:9 Id: 9 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0x9 Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:10 Id: 10 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0xa Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:11 Id: 11 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0xb Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:12 Id: 12 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0xc Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:13 Id: 13 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0xd Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:14 Id: 14 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0xe Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 CPU:15 Id: 15 Package Id: 0 Family: 23 Model: 96 Type: 0 Stepping: 1 Brand: AuthenticAMD Core Speed: 1796624579 Bus Speed: 99812440 APIC ID: 0xf Node: 0 L2 Cache Size: 524288 L2 Cache Associativity: 8 L2 Cache Line Size: 64 L2 Cache CPU Count: 2 L3 Cache Size: 4194304 L3 Cache Associativity: 16 L3 Cache Line Size: 64 L3 Cache CPU Count: 8 [root@minis01:~] esxcli hardware memory get Physical Memory: 33736523776 Bytes Reliable Memory: 0 Bytes NUMA Node Count: 1 [root@minis01:~] esxcli hardware platform get Platform Information UUID: 0x3 0x0 0x2 0x0 0x4 0x0 0x5 0x0 0x0 0x6 0x0 0x7 0x0 0x8 0x0 0x9 Product Name: HM80 Vendor Name: BESSTAR TECH LIMITED Serial Number: Default string Enclosure Serial Number: Default string BIOS Asset Tag: Default string IPMI Supported: false`esxcli hardware pci list` も長すぎて死ねる… あと ipmi は載ってないので`esxcli hardware ipmi hoge`も省略。
esxcli network nic list
[root@minis01:~] esxcli network nic list Name PCI Device Driver Admin Status Link Status Speed Duplex MAC Address MTU Description ------ ------------ ------------- ------------ ----------- ----- ------ ----------------- ---- ----------- vmnic0 0000:04:00.0 igc-community Up Up 1000 Full 1c:83:41:30:12:ac 1500 Intel Corporation Ethernet Controller I225-V
esxcli storage core hoge
[root@minis01:~] esxcli storage core device list t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600 Display Name: Local NVMe Disk (t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600) Has Settable Display Name: false Size: 488386 Device Type: Direct-Access Multipath Plugin: HPP Devfs Path: /vmfs/devices/disks/t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600 Vendor: NVMe Model: KINGSTON OM8PCP3 Revision: ECFK SCSI Level: 7 Is Pseudo: false Status: on Is RDM Capable: false Is Local: true Is Removable: false Is SSD: true Is VVOL PE: false Is Offline: false Is Perennially Reserved: false Queue Full Sample Size: 0 Queue Full Threshold: 0 Thin Provisioning Status: yes Attached Filters: VAAI Status: unsupported Other UIDs: vml.053bf8d1d17026c7b81c8838726d27702df3f12293828ae2142edf55122182da81 Is Shared Clusterwide: false Is SAS: false Is USB: false Is Boot Device: true Device Max Queue Depth: 1023 No of outstanding IOs with competing worlds: 32 Drive Type: physical RAID Level: NA Number of Physical Drives: 1 Protection Enabled: false PI Activated: false PI Type: 0 PI Protection Mask: NO PROTECTION Supported Guard Types: NO GUARD SUPPORT DIX Enabled: false DIX Guard Type: NO GUARD SUPPORT Emulated DIX/DIF Enabled: false [root@minis01:~] esxcli storage core adapter list HBA Name Driver Link State UID Capabilities Description -------- --------- ---------- ----------- ------------ ----------- vmhba0 vmw_ahci link-n/a sata.vmhba0 (0000:07:00.0) Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] vmhba1 vmw_ahci link-n/a sata.vmhba1 (0000:07:00.1) Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] vmhba2 nvme_pcie link-n/a pcie.100 (0000:01:00.0) Kingston Technology Company, Inc. <class> Non-Volatile memory controller [root@minis01:~] esxcli storage core path list pcie.100-pcie.0:0-t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600 UID: pcie.100-pcie.0:0-t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600 Runtime Name: vmhba2:C0:T0:L0 Device: t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600 Device Display Name: Local NVMe Disk (t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600) Adapter: vmhba2 Channel: 0 Target: 0 LUN: 0 Plugin: HPP State: active Transport: pcie Adapter Identifier: pcie.100 Target Identifier: pcie.0:0 Adapter Transport Details: Unavailable or path is unclaimed Target Transport Details: Unavailable or path is unclaimed
esxcfg-scsidevs -l
[root@minis01:~] esxcfg-scsidevs -l
t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600
Device Type: Direct-Access
Size: 488386 MB
Display Name: Local NVMe Disk (t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600)
Multipath Plugin: HPP
Console Device: /vmfs/devices/disks/t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600
Devfs Path: /vmfs/devices/disks/t10.NVMe____KINGSTON_OM8PCP3512F2DA02________________F5EB7F4A68B72600
Vendor: NVMe Model: KINGSTON OM8PCP3 Revis: ECFK
SCSI Level: 7 Is Pseudo: false Status: on
Is RDM Capable: false Is Removable: false
Is Local: true Is SSD: true
Other Names:
vml.053bf8d1d17026c7b81c8838726d27702df3f12293828ae2142edf55122182da81
vml.0100000000463545425f374634415f363842375f32363030004b494e475354
VAAI Status: unsupported
lspci -vvv
[root@minis01:~] lspci -vvv
0000:00:00.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Root Complex
Class 0600: 1022:1630
0000:00:00.2 Generic system peripheral IOMMU: Advanced Micro Devices, Inc. [AMD] Renoir IOMMU
Class 0806: 1022:1631
0000:00:01.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge
Class 0600: 1022:1632
0000:00:01.2 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:01.2]]
Class 0604: 1022:1634
0000:00:01.3 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:01.3]]
Class 0604: 1022:1634
0000:00:02.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge
Class 0600: 1022:1632
0000:00:02.1 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:02.1]]
Class 0604: 1022:1634
0000:00:02.2 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:02.2]]
Class 0604: 1022:1634
0000:00:02.3 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe GPP Bridge [PCIe RP[0000:00:02.3]]
Class 0604: 1022:1634
0000:00:08.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir PCIe Dummy Host Bridge
Class 0600: 1022:1632
0000:00:08.1 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir Internal PCIe GPP Bridge to Bus [PCIe RP[0000:00:08.1]]
Class 0604: 1022:1635
0000:00:08.2 Bridge PCI bridge: Advanced Micro Devices, Inc. [AMD] Renoir Internal PCIe GPP Bridge to Bus [PCIe RP[0000:00:08.2]]
Class 0604: 1022:1635
0000:00:14.0 Serial bus controller SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller
Class 0c05: 1022:790b
0000:00:14.3 Bridge ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge
Class 0601: 1022:790e
0000:00:18.0 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 0
Class 0600: 1022:1448
0000:00:18.1 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 1
Class 0600: 1022:1449
0000:00:18.2 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 2
Class 0600: 1022:144a
0000:00:18.3 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 3
Class 0600: 1022:144b
0000:00:18.4 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 4
Class 0600: 1022:144c
0000:00:18.5 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 5
Class 0600: 1022:144d
0000:00:18.6 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 6
Class 0600: 1022:144e
0000:00:18.7 Bridge Host bridge: Advanced Micro Devices, Inc. [AMD] Renoir Device 24: Function 7
Class 0600: 1022:144f
0000:01:00.0 Mass storage controller Non-Volatile memory controller: Kingston Technology Company, Inc. Device 500c [vmhba2]
Class 0108: 2646:500c
0000:02:00.0 Network controller Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller
Class 0200: 10ec:8168
0000:03:00.0 Network controller Network controller: Intel Corporation Wi-Fi 6 AX200
Class 0280: 8086:2723
0000:04:00.0 Network controller Ethernet controller: Intel Corporation Ethernet Controller I225-V [vmnic0]
Class 0200: 8086:15f3
0000:05:00.0 Serial bus controller USB controller: VIA Technologies, Inc. VL805 USB 3.0 Host Controller
Class 0c03: 1106:3483
0000:06:00.0 Display controller VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Renoir
Class 0300: 1002:1636
0000:06:00.1 Multimedia controller Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device 1637
Class 0403: 1002:1637
0000:06:00.2 Encryption controller Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) Platform Security Processor
Class 1080: 1022:15df
0000:06:00.3 Serial bus controller USB controller: Advanced Micro Devices, Inc. [AMD] Renoir USB 3.1
Class 0c03: 1022:1639
0000:06:00.4 Serial bus controller USB controller: Advanced Micro Devices, Inc. [AMD] Renoir USB 3.1
Class 0c03: 1022:1639
0000:06:00.5 Multimedia controller Multimedia controller: Advanced Micro Devices, Inc. [AMD] Raven/Raven2/FireFlight/Renoir Audio Processor
Class 0480: 1022:15e2
0000:06:00.6 Multimedia controller Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) HD Audio Controller
Class 0403: 1022:15e3
0000:06:00.7 Signal processing controller Signal processing controller: Advanced Micro Devices, Inc. [AMD] Raven/Raven2/Renoir Sensor Fusion Hub
Class 1180: 1022:15e4
0000:07:00.0 Mass storage controller SATA controller: Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] [vmhba0]
Class 0106: 1022:7901
0000:07:00.1 Mass storage controller SATA controller: Advanced Micro Devices Inc AMD FCH SATA Controller [AHCI Mode] [vmhba1]
Class 0106: 1022:7901
smbiosDump
[root@minis01:~] smbiosDump
Dumping live SMBIOS data!
BIOS Info (Type 0): #0
Size: 0x0001a
Vendor: "American Megatrends Inc."
Version: "5.16"
Date: "07/09/2021"
Start Address: 0xf0000
ROM Size: 16384 kB
Features: 0x0d03000000013f8b9880
PCI supported
BIOS flashable
BIOS shadowing allowed
CD boot supported
Selectable boot supported
BIOS ROM socketed
EDD spec supported
1.2MB Floppy supported
720kB Floppy supported
2.88MB Floppy supported
Print Screen supported
8042 Keyboard Services supported
Serial Services supported
Printer Services supported
ACPI supported
USB Legacy supported
BIOS Boot Spec supported
Enable targeted content distribution
UEFI supported
System BIOS release: 5.16
System Info (Type 1): #1
Manufacturer: "BESSTAR TECH LIMITED"
Product: "HM80"
Version: "Default string"
Serial: "Default string"
SKU: "Default string"
Family: "Default string"
UUID: 09000800070006000500040003000200
Wake-up: 0x06 (Power Switch)
Baseboard Info (Type 2): #2
Manufacturer: "BESSTAR TECH LIMITED"
Product: "HM80"
Version: "Default string"
Serial: "Default string"
Asset Tag: "Default string"
Type: 0x0a (Motherboard)
Features: 0x09
Hosting Board
Replaceable
Location: "Default string"
Chassis: #3
Chassis Info (Type 3): #3
Manufacturer: "Default string"
Version: "Default string"
Serial: "Default string"
Asset Tag: "Default string"
Type: 0x03 (Desktop)
Bootup State: 0x03 (Safe)
Power Supply State: 0x03 (Safe)
Thermal State: 0x03 (Safe)
Security Status: 0x03 (None)
Power Cords: 1
SKU: "Default string"
Onboard Devices (Type 10): #4
Video: "To Be Filled By O.E.M."
OEM Strings (Type 11): #5
Default string
System Config Options (Type 12) #6:
Default string
Type 32 Record: #7
Data 00: 20 14 07 00 00 00 00 00 00 00 00 00 00 00 00 00
Data 10: 00 00 00 00
Type 43 Record: #8
Data 00: 2b 1f 08 00 41 4d 44 00 02 00 2f 00 03 00 05 00
Data 10: 00 00 02 10 00 00 00 00 00 00 00 00 00 00 00
String 1: "TPM 2.0"
String 2: "AMD"
32bit-Memory Error Info (Type 18): #9
Type: 0x03 (OK)
Granularity: 0x02 (Unknown)
Operation: 0x02 (Unknown)
Physical Memory Array (Type 16): #10
Use: 0x03 (System memory)
Location: 0x03 (Motherboard)
Slots: 2
Max. Size: 32 GB
ECC: 0x03 (None)
Error Info: #9
Memory Array Mapping (Type 19): #11
Memory Array: #10
Partition Width: 2
Start Address: 0x0000000000000000
End Address: 0x0000000800000000
Cache Info (Type 7): #12
Designation: "L1 - Cache"
Level: L1
State: Enabled
Mode: 0x01 (Write Back)
Location: 0x00 (Internal, Not Socketed)
ECC: 0x06 (Multi-bit)
Type: 0x05 (Unified)
Associativity: 0x07 (8-way Set-Associative)
Max. Size: 512 kB
Current Size: 512 kB
Speed: 1 ns
Supported SRAM Types: 0x0010 (Pipeline Burst)
Current SRAM Type: 0x0010 (Pipeline Burst)
Cache Info (Type 7): #13
Designation: "L2 - Cache"
Level: L2
State: Enabled
Mode: 0x01 (Write Back)
Location: 0x00 (Internal, Not Socketed)
ECC: 0x06 (Multi-bit)
Type: 0x05 (Unified)
Associativity: 0x07 (8-way Set-Associative)
Max. Size: 4096 kB
Current Size: 4096 kB
Speed: 1 ns
Supported SRAM Types: 0x0010 (Pipeline Burst)
Current SRAM Type: 0x0010 (Pipeline Burst)
Cache Info (Type 7): #14
Designation: "L3 - Cache"
Level: L3
State: Enabled
Mode: 0x01 (Write Back)
Location: 0x00 (Internal, Not Socketed)
ECC: 0x06 (Multi-bit)
Type: 0x05 (Unified)
Associativity: 0x08 (16-way Set-Associative)
Max. Size: 8192 kB
Current Size: 8192 kB
Speed: 1 ns
Supported SRAM Types: 0x0010 (Pipeline Burst)
Current SRAM Type: 0x0010 (Pipeline Burst)
Processor Info (Type 4): #15
Payload length: 0x30
Socket: "FP6"
Socket Type: 0x06 (None)
Socket Status: Populated
Type: 0x03 (CPU)
Family: 0x6b (Zen)
Manufacturer: "Advanced Micro Devices, Inc."
Version: "AMD Ryzen 7 4800U with Radeon Graphics"
Serial: "Unknown"
Asset Tag: "Unknown"
Part Number: "Unknown"
Processor ID: 0x178bfbff00860f01
Status: 0x01 (Enabled)
Voltage: 1.2 V
External Clock: 100 MHz
Max. Speed: 4300 MHz
Current Speed: 1800 MHz
L1 Cache: #12
L2 Cache: #13
L3 Cache: #14
Core Count: 8
Core Enabled Count: 8
Thread Count: 16
Characteristics: 0x00fc (64-bit Capable, Multi-Core, Hardware Thread, Execute Protection, Enhanced Virtualization, Power/Performance Control)
32bit-Memory Error Info (Type 18): #16
Type: 0x03 (OK)
Granularity: 0x02 (Unknown)
Operation: 0x02 (Unknown)
Memory Device (Type 17): #17
Location: "DIMM 0"
Bank: "P0 CHANNEL A"
Manufacturer: "Kingston"
Serial: "726349A1"
Part Number: "CBD32D4S2S8ME-16"
Memory Array: #10
Error Info: #16
Form Factor: 0x0d (SODIMM)
Type: 0x1a (DDR4)
Type Detail: 0x4080 (Synchronous, Unregistered)
Data Width: 64 bits
Size: 16 GB
Max. Speed: 3200 MT/s
Rank: 1
Configured Speed: 3200 MT/s
Min. Voltage: 1200 mV
Max. Voltage: 1200 mV
Configured Voltage: 1200 mV
Technology: 0x03 (DRAM)
Mode Capability: 0x0008 (Volatile)
Firmware Version: "Unknown"
Module Manufacturer ID: 0x9801
Volatile Size: 17179869184 bytes
Memory Device Mapping (Type 20): #18
Memory Device: #17
Array Mapping: #11
Start Address: 0x0000000000000000
End Address: 0x0000000800000000
32bit-Memory Error Info (Type 18): #19
Type: 0x03 (OK)
Granularity: 0x02 (Unknown)
Operation: 0x02 (Unknown)
Memory Device (Type 17): #20
Location: "DIMM 0"
Bank: "P0 CHANNEL B"
Manufacturer: "Kingston"
Serial: "7D634996"
Part Number: "CBD32D4S2S8ME-16"
Memory Array: #10
Error Info: #19
Form Factor: 0x0d (SODIMM)
Type: 0x1a (DDR4)
Type Detail: 0x4080 (Synchronous, Unregistered)
Data Width: 64 bits
Size: 16 GB
Max. Speed: 3200 MT/s
Rank: 1
Configured Speed: 3200 MT/s
Min. Voltage: 1200 mV
Max. Voltage: 1200 mV
Configured Voltage: 1200 mV
Technology: 0x03 (DRAM)
Mode Capability: 0x0008 (Volatile)
Firmware Version: "Unknown"
Module Manufacturer ID: 0x9801
Volatile Size: 17179869184 bytes
Memory Device Mapping (Type 20): #21
Memory Device: #20
Array Mapping: #11
Start Address: 0x0000000000000000
End Address: 0x0000000800000000
Port Connector (Type 8): #22
Type: 0x0d (Keyboard Port)
Internal Designator: "J2304/J2300"
External Designator: "Keyboard"
External Connector: 0x0f (PS/2)
Port Connector (Type 8): #23
Type: 0x0e (Mouse Port)
Internal Designator: "J3811"
External Designator: "Touch pad"
External Connector: 0x0f (PS/2)
Port Connector (Type 8): #24
Type: 0x10 (USB)
Internal Designator: "J1504"
External Designator: "USB 3.0"
External Connector: 0x12 (Access Bus [USB])
Port Connector (Type 8): #25
Type: 0x10 (USB)
Internal Designator: "J1500"
External Designator: "USB 3.1"
External Connector: 0x12 (Access Bus [USB])
Port Connector (Type 8): #26
Type: 0x10 (USB)
Internal Designator: "J1502"
External Designator: "USB 3.1"
External Connector: 0x12 (Access Bus [USB])
Port Connector (Type 8): #27
Type: 0x10 (USB)
Internal Designator: "J1501"
External Designator: "USB 3.1 Type-C"
External Connector: 0x12 (Access Bus [USB])
Port Connector (Type 8): #28
Type: 0x10 (USB)
Internal Designator: "J1503"
External Designator: "USB 3.1 Type-C"
External Connector: 0x12 (Access Bus [USB])
Port Connector (Type 8): #29
Type: 0x1f (Network Port)
Internal Designator: "J1300"
External Designator: "Network"
External Connector: 0x0b (RJ-45)
Port Connector (Type 8): #30
Type: 0x20 (SATA)
Internal Designator: "J1701"
Internal Connector: 0x22 (SAS/SATA Plug Receptacle)
External Designator: "Sata HDD"
Port Connector (Type 8): #31
Type: 0x20 (SATA)
Internal Designator: "J1703"
Internal Connector: 0x22 (SAS/SATA Plug Receptacle)
External Designator: "Sata ODD"
Port Connector (Type 8): #32
Type: 0x1c (Video Port)
Internal Designator: "J1101"
External Designator: "DP0"
Port Connector (Type 8): #33
Type: 0x1c (Video Port)
Internal Designator: "J1100"
External Designator: "DP1"
Port Connector (Type 8): #34
Type: 0x1d (Audio Port)
Internal Designator: "J2103"
External Designator: "Microphone"
External Connector: 0x1f (Mini-jack [headphones])
Port Connector (Type 8): #35
Type: 0x1d (Audio Port)
Internal Designator: "J2105"
External Designator: "Headphone"
External Connector: 0x1f (Mini-jack [headphones])
System Slot (Type 9): #36
Designation: "J3604"
Type: 0xa9 (PCI Express x8)
Bus Width: 0x0b (x8)
Status: 0x03 (Available)
Length: 0x03 (Short)
Slot ID: 1
Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug)
PCI Address: 0200:00:01.1
System Slot (Type 9): #37
Designation: "J3711"
Type: 0x15 (M.2 Socket 1-SD [Mechanical Key E])
Bus Width: 0x08 (x1)
Status: 0x04 (In Use)
Length: 0x03 (Short)
Slot ID: 3
Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug)
PCI Address: 0000:00:01.2
System Slot (Type 9): #38
Designation: "J3704"
Type: 0x17 (M.2 Socket 3 [Mechanical Key M])
Bus Width: 0x09 (x2)
Status: 0x03 (Available)
Length: 0x03 (Short)
Slot ID: 5
Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug)
PCI Address: 0200:00:01.7
System Slot (Type 9): #39
Designation: "J3709"
Type: 0x15 (M.2 Socket 1-SD [Mechanical Key E])
Bus Width: 0x08 (x1)
Status: 0x03 (Available)
Length: 0x03 (Short)
Slot ID: 6
Characteristics: 0x0304 (3.3 V, PME#, Hot-Plug)
PCI Address: 0200:00:01.5
Onboard Device (Type 41): #40
Designation: "Onboard LAN Brodcom"
Status: Enabled
Type: 0x05 (Ethernet)
Instance: 0x01
PCI Address: 0000:02:00.0
Onboard Device (Type 41): #41
Designation: "HD Audio Controller"
Status: Enabled
Type: 0x07 (Sound)
Instance: 0x01
PCI Address: 0000:06:00.6
Language Info (Type 13): #42
Languages: en|US|iso8859-1
Current: en|US|iso8859-1
FYI
何するかはさておき、8c/16t でコスパ抜群と満足度高めな HM80 ですが、
早くも MINISFORUM の後継(?)モデルが…
Minisforum EliteMini HX90store.minisforum.jp
同じ 8c/16t ではあるが、CPU が Zen3 な AMD Ryzen9 5900HX になり、4画面出力対応。
メモリ/NVMe 無しのベアボーンモデルがあるので、メモリ 64GB 載せるつもりならこちらの方がお得…？
にしても MINISFORUM、他にも多数新モデル出してたりと勢いあるなぁ…
