VexRiscv におけるriscv-formal の実行方法を調査している。

riscv-formal proofs for VexRiscv

Current state:

Test a simple VexRiscv configuration: https://github.com/SpinalHDL/VexRiscv/blob/master/src/main/scala/vexriscv/demo/FormalSimple.scala

All standards checks are passing

Instruction Checks
PC Checks
Register Checks
Causality
Liveness

Others tests passing :

Instruction Memory check
Data Memory check

Quickstart guide:

First install Yosys, SymbiYosys, and the solvers. See here for instructions.

To run all standards checks:

python3 ../../checks/genchecks.py
make -C checks -j$(nproc)

To run again a single check which had failed:

#A single time
python3 ../../checks/genchecks.py

#Each time
export test=insn_beq_ch0; rm -r checks/$test; make -C checks -j$(nproc) $test/PASS; python3 disasm.py checks/$test/engine_0/trace.vcd

To run imem/dmem checks checks :

sby -f imemcheck.sby
sby -f dmemcheck.sby

Todo:

Integrate others VexRiscv configurations into the framework
Add Checking for equivalence of core with and without RVFI check
Add Complete check
Add Cover check

VexRiscvへの適用方法

VexRiscvのドキュメントにしたがって、riscv-formal を適用してみる。

cd riscv-formal/cores/VexRiscv
python3 ../../checks/genchecks.py
make -C checks -j$(nproc)

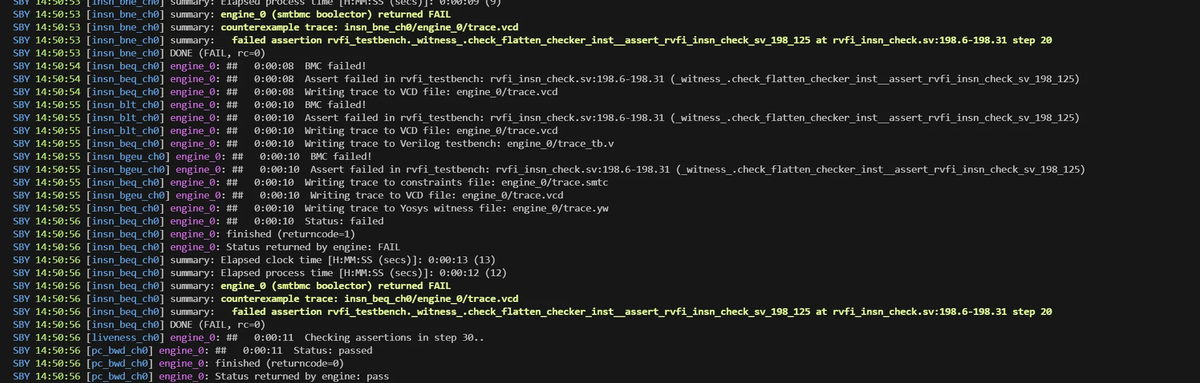

大量のフォーマルが動き出したようだ。

それぞれのアサーションは、どういうことをしているのかな？もうちょっと見てみたい。
