OpenTelemetryのzero-code計装を試している〜その5。PHP

tech

zero-code計装シリーズも終盤、PHPでのzero-code計装をやってみる。

kmuto.hatenablog.com kmuto.hatenablog.com kmuto.hatenablog.com kmuto.hatenablog.com

いつものように雑なWebサーバーを立てる。まぁフレームワーク前提だよねということで、ユーザーも多そうなLaravel。大昔にSymphonyしか触わったことがないので初見。

DBはPostgreSQLにしてみる。

apt-get install composer php-pear php8.2-dev php-pgsql

Laravelのプロジェクト作成。デフォルトはsqlite3を使うみたいで、マイグレーション失敗のWARNINGが出た。

composer create-project laravel/laravel hello-world-app
cd hello-world-app

DB設定のために.envファイルを編集する（ローカル用でパスワードなどが雑）。

DB_CONNECTION=pgsql
DB_HOST=127.0.0.1
DB_PORT=5432
DB_DATABASE=laravel_hello_world
DB_USERNAME=laravel
DB_PASSWORD=laravel

PostgreSQLのほうでも対応するDBを準備しておく。

CREATE DATABASE laravel_hello_world;
CREATE USER laravel WITH PASSWORD 'laravel';
GRANT ALL PRIVILEGES ON DATABASE laravel_hello_world TO laravel;
\c laravel_hello_world
GRANT USAGE, CREATE ON SCHEMA public TO laravel;

SCHEMAはこう設定しないとLaravelで作れなかったので。よくはわかっていない。

マイグレーションを実行。

php artisan migrate

ルーティングファイルroutes/web.phpにHello Worldと、例外発生、ステータスコード500返答を仕込む。

<?php

use Illuminate\Support\Facades\Route;

Route::get('/', function () {
    return 'Hello World';
});

Route::get('/error', function () {
    1 / 0;
});

Route::get('/500', function () {
    abort(500, 'Internal Server Error');
});

例外起こすのが連載通してどんどん雑になってきているけど、0除算（静的評価されるとこれダメなんだよねぇ）。

とりあえず起動して期待どおりかテストする。デフォルトは8000ポートで起動する。

php artisan serve

curlから叩いてみると

$ curl http://localhost:8000
Hello World
$ curl http://localhost:8000/error
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <meta
        name="viewport"
        content="width=device-width, initial-scale=1"
    />

    <title>Laravel</title>
    ...
100 98304    0 98304    0     0   891k      0 --:--:-- --:--:-- --:--:--  888k
curl: (23) Failure writing output to destination
$ curl http://localhost:8000/500
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <meta name="viewport" content="width=device-width, initial-scale=1">
...
1;color:#cbd5e0;color:rgba(203,213,224,var(--text-opacity))}}

OpenTelemetry Collectorをいつものように用意し、実行しておく。

receivers:
  otlp:
    protocols:
      http:

exporters:
  debug:
    verbosity: detailed

service:
  pipelines:
    metrics:
      receivers: [otlp]
      exporters: [debug]
    logs:
      receivers: [otlp]
      exporters: [debug]
    traces:
      receivers: [otlp]
      exporters: [debug]

PHPのzero-code計装はやや複雑な印象。まずOpenTelemetry Extensionをビルドする必要がある。RPMとAPKはパッケージがあるが、それ以外のOSではpeclかpickleを使う。これもしかしてWindowsだと動かないってやつかも。

とりあえずpeclでやってみる。

sudo pecl install opentelemetry

opentelemetry.soファイルができてインストールされるので、有効化されるよう/etc/php/8.2/cli/conf.d/99-opentelemetry.iniを作る。

[opentelemetry]
extension=opentelemetry.so

これはベースができただけなので、対象に計装するにはSDKやライブラリに対応する計装パッケージを追加する必要があるようだ。今回は以下のようにした。

composer require open-telemetry/sdk open-telemetry/opentelemetry-auto-laravel open-telemetry/exporter-otlp

exporter-otlpが必要なのがちょっと罠だった。リストを見るとSymphonyやSlimのほか、WordPressなども。

Do you trust "tbachert/spi" to execute code and wish to enable it now? (writes "allow-plugins" to composer.json) [y,n,d,?]

はnでいいんだろうか。

ではzero-code計装で実行。OTEL_PHP_AUTOLOAD_ENABLED=trueで有効化されるので、わかりやすい。

OTEL_PHP_AUTOLOAD_ENABLED=true OTEL_SERVICE_NAME=php-zerocode php artisan serve

curlを叩いて、トレースを送る。

2025-01-26T23:08:18.602+0900    info    Traces  {"kind": "exporter", "data_type": "traces", "name": "debug", "resource spans": 1, "spans": 4}
2025-01-26T23:08:18.602+0900    info    ResourceSpans #0
Resource SchemaURL: https://opentelemetry.io/schemas/1.27.0
Resource attributes:
     -> host.name: Str(...)
     -> host.arch: Str(x86_64)
     -> host.id: Str(86fdb17091114232ba104aea4bc5250d)
     -> os.type: Str(linux)
     -> os.description: Str(6.1.0-30-amd64)
     -> os.name: Str(Linux)
     -> os.version: Str(#1 SMP PREEMPT_DYNAMIC Debian 6.1.124-1 (2025-01-12))
     -> process.pid: Int(848077)
     -> process.executable.path: Str(/usr/bin/php8.2)
     -> process.owner: Str(kmuto)
     -> process.runtime.name: Str(cli-server)
     -> process.runtime.version: Str(8.2.26)
     -> telemetry.sdk.name: Str(opentelemetry)
     -> telemetry.sdk.language: Str(php)
     -> telemetry.sdk.version: Str(1.2.0)
     -> telemetry.distro.name: Str(opentelemetry-php-instrumentation)
     -> telemetry.distro.version: Str(1.1.2)
     -> service.name: Str(php-zerocode)
     -> service.version: Str(1.0.0+no-version-set)
ScopeSpans #0
ScopeSpans SchemaURL: https://opentelemetry.io/schemas/1.24.0
InstrumentationScope io.opentelemetry.contrib.php.laravel
Span #0
    Trace ID       : 3d4f2ba3e710aebed390dac187d5eb05
    Parent ID      : 947b9b1df3b43ccc
    ID             : 9f46dbf889c30c2d
    Name           : sql SELECT
    Kind           : Client
    Start time     : 2025-01-26 14:08:18.561135104 +0000 UTC
    End time       : 2025-01-26 14:08:18.572734976 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(SELECT)
     -> db.user: Str(laravel)
     -> db.statement: Str(select * from "sessions" where "id" = ? limit 1)
Span #1
    Trace ID       : 3d4f2ba3e710aebed390dac187d5eb05
    Parent ID      : 947b9b1df3b43ccc
    ID             : 282c12089b375083
    Name           : sql SELECT
    Kind           : Client
    Start time     : 2025-01-26 14:08:18.581395968 +0000 UTC
    End time       : 2025-01-26 14:08:18.581725952 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(SELECT)
     -> db.user: Str(laravel)
     -> db.statement: Str(select * from "sessions" where "id" = ? limit 1)
Span #2
    Trace ID       : 3d4f2ba3e710aebed390dac187d5eb05
    Parent ID      : 947b9b1df3b43ccc
    ID             : c653096a13be530e
    Name           : sql INSERT
    Kind           : Client
    Start time     : 2025-01-26 14:08:18.58180992 +0000 UTC
    End time       : 2025-01-26 14:08:18.584399872 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(INSERT)
     -> db.user: Str(laravel)
     -> db.statement: Str(insert into "sessions" ("payload", "last_activity", "user_id", "ip_address", "user_agent", "id") values (?, ?, ?, ?, ?, ?))
Span #3
    Trace ID       : 3d4f2ba3e710aebed390dac187d5eb05
    Parent ID      :
    ID             : 947b9b1df3b43ccc
    Name           : GET /
    Kind           : Server
    Start time     : 2025-01-26 14:08:18.476215131 +0000 UTC
    End time       : 2025-01-26 14:08:18.584681958 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> code.function: Str(handle)
     -> code.namespace: Str(Illuminate\Foundation\Http\Kernel)
     -> code.filepath: Str(/home/kmuto/php-zerocode/hello-world-app/vendor/laravel/framework/src/Illuminate/Foundation/Http/Kernel.php)
     -> code.lineno: Int(138)
     -> url.full: Str(http://localhost:8000)
     -> http.request.method: Str(GET)
     -> url.scheme: Str(http)
     -> network.protocol.version: Str(1.1)
     -> network.peer.address: Str(127.0.0.1)
     -> url.path: Str(/)
     -> server.address: Str(localhost)
     -> server.port: Int(8000)
     -> client.port: Str(36044)
     -> user_agent.original: Str(curl/7.88.1)
     -> http.route: Str(/)
     -> http.response.status_code: Int(200)
        {"kind": "exporter", "data_type": "traces", "name": "debug"}
2025-01-26T23:08:22.906+0900    info    Logs    {"kind": "exporter", "data_type": "logs", "name": "debug", "resource logs": 1, "log records": 1}
2025-01-26T23:08:22.906+0900    info    ResourceLog #0
Resource SchemaURL:
Resource attributes:
     -> host.name: Str(...)
     -> host.arch: Str(x86_64)
     -> host.id: Str(86fdb17091114232ba104aea4bc5250d)
     -> os.type: Str(linux)
     -> os.description: Str(6.1.0-30-amd64)
     -> os.name: Str(Linux)
     -> os.version: Str(#1 SMP PREEMPT_DYNAMIC Debian 6.1.124-1 (2025-01-12))
     -> process.pid: Int(848079)
     -> process.executable.path: Str(/usr/bin/php8.2)
     -> process.owner: Str(kmuto)
     -> process.runtime.name: Str(cli-server)
     -> process.runtime.version: Str(8.2.26)
     -> telemetry.sdk.name: Str(opentelemetry)
     -> telemetry.sdk.language: Str(php)
     -> telemetry.sdk.version: Str(1.2.0)
     -> telemetry.distro.name: Str(opentelemetry-php-instrumentation)
     -> telemetry.distro.version: Str(1.1.2)
     -> service.name: Str(php-zerocode)
     -> service.version: Str(1.0.0+no-version-set)
ScopeLogs #0
ScopeLogs SchemaURL: https://opentelemetry.io/schemas/1.24.0
InstrumentationScope io.opentelemetry.contrib.php.laravel
LogRecord #0
ObservedTimestamp: 2025-01-26 14:08:22.827527936 +0000 UTC
Timestamp: 1970-01-01 00:00:00 +0000 UTC
SeverityText: error
SeverityNumber: Error(17)
Body: Str(Division by zero)
Attributes:
     -> context: Str({"exception":{}})
Trace ID: 90de68340f9885fa382cee66ba8530e7
Span ID: 99f91f836e892c6d
Flags: 1
        {"kind": "exporter", "data_type": "logs", "name": "debug"}
2025-01-26T23:08:22.911+0900    info    Traces  {"kind": "exporter", "data_type": "traces", "name": "debug", "resource spans": 1, "spans": 4}
2025-01-26T23:08:22.911+0900    info    ResourceSpans #0
Resource SchemaURL: https://opentelemetry.io/schemas/1.27.0
Resource attributes:
     -> host.name: Str(...)
     -> host.arch: Str(x86_64)
     -> host.id: Str(86fdb17091114232ba104aea4bc5250d)
     -> os.type: Str(linux)
     -> os.description: Str(6.1.0-30-amd64)
     -> os.name: Str(Linux)
     -> os.version: Str(#1 SMP PREEMPT_DYNAMIC Debian 6.1.124-1 (2025-01-12))
     -> process.pid: Int(848079)
     -> process.executable.path: Str(/usr/bin/php8.2)
     -> process.owner: Str(kmuto)
     -> process.runtime.name: Str(cli-server)
     -> process.runtime.version: Str(8.2.26)
     -> telemetry.sdk.name: Str(opentelemetry)
     -> telemetry.sdk.language: Str(php)
     -> telemetry.sdk.version: Str(1.2.0)
     -> telemetry.distro.name: Str(opentelemetry-php-instrumentation)
     -> telemetry.distro.version: Str(1.1.2)
     -> service.name: Str(php-zerocode)
     -> service.version: Str(1.0.0+no-version-set)
ScopeSpans #0
ScopeSpans SchemaURL: https://opentelemetry.io/schemas/1.24.0
InstrumentationScope io.opentelemetry.contrib.php.laravel
Span #0
    Trace ID       : 90de68340f9885fa382cee66ba8530e7
    Parent ID      : 99f91f836e892c6d
    ID             : a92c837bcacac6a9
    Name           : sql SELECT
    Kind           : Client
    Start time     : 2025-01-26 14:08:22.8019648 +0000 UTC
    End time       : 2025-01-26 14:08:22.816504832 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(SELECT)
     -> db.user: Str(laravel)
     -> db.statement: Str(select * from "sessions" where "id" = ? limit 1)
Span #1
    Trace ID       : 90de68340f9885fa382cee66ba8530e7
    Parent ID      : 99f91f836e892c6d
    ID             : 32eaaaa96555afe8
    Name           : sql SELECT
    Kind           : Client
    Start time     : 2025-01-26 14:08:22.899186944 +0000 UTC
    End time       : 2025-01-26 14:08:22.899617024 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(SELECT)
     -> db.user: Str(laravel)
     -> db.statement: Str(select * from "sessions" where "id" = ? limit 1)
Span #2
    Trace ID       : 90de68340f9885fa382cee66ba8530e7
    Parent ID      : 99f91f836e892c6d
    ID             : de58c4891e6175de
    Name           : sql INSERT
    Kind           : Client
    Start time     : 2025-01-26 14:08:22.899713024 +0000 UTC
    End time       : 2025-01-26 14:08:22.901542912 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(INSERT)
     -> db.user: Str(laravel)
     -> db.statement: Str(insert into "sessions" ("payload", "last_activity", "user_id", "ip_address", "user_agent", "id") values (?, ?, ?, ?, ?, ?))
Span #3
    Trace ID       : 90de68340f9885fa382cee66ba8530e7
    Parent ID      :
    ID             : 99f91f836e892c6d
    Name           : GET /error
    Kind           : Server
    Start time     : 2025-01-26 14:08:22.794552067 +0000 UTC
    End time       : 2025-01-26 14:08:22.901732926 +0000 UTC
    Status code    : Error
    Status message :
Attributes:
     -> code.function: Str(handle)
     -> code.namespace: Str(Illuminate\Foundation\Http\Kernel)
     -> code.filepath: Str(/home/kmuto/php-zerocode/hello-world-app/vendor/laravel/framework/src/Illuminate/Foundation/Http/Kernel.php)
     -> code.lineno: Int(138)
     -> url.full: Str(http://localhost:8000/error)
     -> http.request.method: Str(GET)
     -> url.scheme: Str(http)
     -> network.protocol.version: Str(1.1)
     -> network.peer.address: Str(127.0.0.1)
     -> url.path: Str(error)
     -> server.address: Str(localhost)
     -> server.port: Int(8000)
     -> client.port: Str(36056)
     -> user_agent.original: Str(curl/7.88.1)
     -> http.route: Str(error)
     -> http.response.status_code: Int(500)
Events:
SpanEvent #0
     -> Name: exception
     -> Timestamp: 2025-01-26 14:08:22.826098822 +0000 UTC
     -> DroppedAttributesCount: 0
     -> Attributes::
          -> exception.type: Str(DivisionByZeroError)
          -> exception.message: Str(Division by zero)
          -> exception.stacktrace: Str(DivisionByZeroError: Division by zero
        at Illuminate.Routing.RouteFileRegistrar.{closure}(web.php:10)
        at Illuminate.Routing.CallableDispatcher.dispatch(CallableDispatcher.php:40)
        at Illuminate.Routing.Route.runCallable(Route.php:244)
        at Illuminate.Routing.Route.run(Route.php:215)
        at Illuminate.Routing.Router.Illuminate.Routing.{closure}(Router.php:808)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:170)
        at Illuminate.Routing.Middleware.SubstituteBindings.handle(SubstituteBindings.php:51)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Foundation.Http.Middleware.VerifyCsrfToken.handle(VerifyCsrfToken.php:88)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.View.Middleware.ShareErrorsFromSession.handle(ShareErrorsFromSession.php:49)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Session.Middleware.StartSession.handleStatefulRequest(StartSession.php:121)
        at Illuminate.Session.Middleware.StartSession.handle(StartSession.php:64)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Cookie.Middleware.AddQueuedCookiesToResponse.handle(AddQueuedCookiesToResponse.php:37)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Cookie.Middleware.EncryptCookies.handle(EncryptCookies.php:75)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Pipeline.Pipeline.then(Pipeline.php:127)
        at Illuminate.Routing.Router.runRouteWithinStack(Router.php:807)
        at Illuminate.Routing.Router.runRoute(Router.php:786)
        at Illuminate.Routing.Router.dispatchToRoute(Router.php:750)
        at Illuminate.Routing.Router.dispatch(Router.php:739)
        at Illuminate.Foundation.Http.Kernel.Illuminate.Foundation.Http.{closure}(Kernel.php:201)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:170)
        at Illuminate.Foundation.Http.Middleware.TransformsRequest.handle(TransformsRequest.php:21)
        at Illuminate.Foundation.Http.Middleware.ConvertEmptyStringsToNull.handle(ConvertEmptyStringsToNull.php:31)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Foundation.Http.Middleware.TransformsRequest.handle(TransformsRequest.php:21)
        at Illuminate.Foundation.Http.Middleware.TrimStrings.handle(TrimStrings.php:51)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Http.Middleware.ValidatePostSize.handle(ValidatePostSize.php:27)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Foundation.Http.Middleware.PreventRequestsDuringMaintenance.handle(PreventRequestsDuringMaintenance.php:110)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Http.Middleware.HandleCors.handle(HandleCors.php:49)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Http.Middleware.TrustProxies.handle(TrustProxies.php:58)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Foundation.Http.Middleware.InvokeDeferredCallbacks.handle(InvokeDeferredCallbacks.php:22)
        at Illuminate.Pipeline.Pipeline.Illuminate.Pipeline.{closure}(Pipeline.php:209)
        at Illuminate.Pipeline.Pipeline.then(Pipeline.php:127)
        at Illuminate.Foundation.Http.Kernel.sendRequestThroughRouter(Kernel.php:176)
        at Illuminate.Foundation.Http.Kernel.handle(Kernel.php:145)
        at Illuminate.Foundation.Application.handleRequest(Application.php:1193)
        at require_once(index.php:17)
        at {main}(server.php:23))
          -> exception.escaped: Bool(true)
        {"kind": "exporter", "data_type": "traces", "name": "debug"}
2025-01-26T23:08:24.849+0900    info    Traces  {"kind": "exporter", "data_type": "traces", "name": "debug", "resource spans": 1, "spans": 4}
2025-01-26T23:08:24.849+0900    info    ResourceSpans #0
Resource SchemaURL: https://opentelemetry.io/schemas/1.27.0
Resource attributes:
     -> host.name: Str(...)
     -> host.arch: Str(x86_64)
     -> host.id: Str(86fdb17091114232ba104aea4bc5250d)
     -> os.type: Str(linux)
     -> os.description: Str(6.1.0-30-amd64)
     -> os.name: Str(Linux)
     -> os.version: Str(#1 SMP PREEMPT_DYNAMIC Debian 6.1.124-1 (2025-01-12))
     -> process.pid: Int(848078)
     -> process.executable.path: Str(/usr/bin/php8.2)
     -> process.owner: Str(kmuto)
     -> process.runtime.name: Str(cli-server)
     -> process.runtime.version: Str(8.2.26)
     -> telemetry.sdk.name: Str(opentelemetry)
     -> telemetry.sdk.language: Str(php)
     -> telemetry.sdk.version: Str(1.2.0)
     -> telemetry.distro.name: Str(opentelemetry-php-instrumentation)
     -> telemetry.distro.version: Str(1.1.2)
     -> service.name: Str(php-zerocode)
     -> service.version: Str(1.0.0+no-version-set)
ScopeSpans #0
ScopeSpans SchemaURL: https://opentelemetry.io/schemas/1.24.0
InstrumentationScope io.opentelemetry.contrib.php.laravel
Span #0
    Trace ID       : 7f0e09261dd1fd7b615c6844089482b5
    Parent ID      : 58ade41ee832eae5
    ID             : dbfc50ada3a33725
    Name           : sql SELECT
    Kind           : Client
    Start time     : 2025-01-26 14:08:24.818509056 +0000 UTC
    End time       : 2025-01-26 14:08:24.83318912 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(SELECT)
     -> db.user: Str(laravel)
     -> db.statement: Str(select * from "sessions" where "id" = ? limit 1)
Span #1
    Trace ID       : 7f0e09261dd1fd7b615c6844089482b5
    Parent ID      : 58ade41ee832eae5
    ID             : 12fb5f4b020ec35e
    Name           : sql SELECT
    Kind           : Client
    Start time     : 2025-01-26 14:08:24.839294976 +0000 UTC
    End time       : 2025-01-26 14:08:24.83967488 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(SELECT)
     -> db.user: Str(laravel)
     -> db.statement: Str(select * from "sessions" where "id" = ? limit 1)
Span #2
    Trace ID       : 7f0e09261dd1fd7b615c6844089482b5
    Parent ID      : 58ade41ee832eae5
    ID             : 59d0af4a720849ec
    Name           : sql INSERT
    Kind           : Client
    Start time     : 2025-01-26 14:08:24.83978496 +0000 UTC
    End time       : 2025-01-26 14:08:24.842264832 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> db.system: Str(pgsql)
     -> db.name: Str(laravel_hello_world)
     -> db.operation: Str(INSERT)
     -> db.user: Str(laravel)
     -> db.statement: Str(insert into "sessions" ("payload", "last_activity", "user_id", "ip_address", "user_agent", "id") values (?, ?, ?, ?, ?, ?))
Span #3
    Trace ID       : 7f0e09261dd1fd7b615c6844089482b5
    Parent ID      :
    ID             : 58ade41ee832eae5
    Name           : GET /500
    Kind           : Server
    Start time     : 2025-01-26 14:08:24.812321874 +0000 UTC
    End time       : 2025-01-26 14:08:24.842457809 +0000 UTC
    Status code    : Error
    Status message :
Attributes:
     -> code.function: Str(handle)
     -> code.namespace: Str(Illuminate\Foundation\Http\Kernel)
     -> code.filepath: Str(/home/kmuto/php-zerocode/hello-world-app/vendor/laravel/framework/src/Illuminate/Foundation/Http/Kernel.php)
     -> code.lineno: Int(138)
     -> url.full: Str(http://localhost:8000/500)
     -> http.request.method: Str(GET)
     -> url.scheme: Str(http)
     -> network.protocol.version: Str(1.1)
     -> network.peer.address: Str(127.0.0.1)
     -> url.path: Str(500)
     -> server.address: Str(localhost)
     -> server.port: Int(8000)
     -> client.port: Str(36072)
     -> user_agent.original: Str(curl/7.88.1)
     -> http.route: Str(500)
     -> http.response.status_code: Int(500)
        {"kind": "exporter", "data_type": "traces", "name": "debug"}

単なるリクエストではあるがORM経由でDBクエリのスパンも送られており、だいぶそれっぽいのが書き出されていて楽しげな雰囲気がある。0除算例外を起こしたところはエラーイベントも出力されていた。

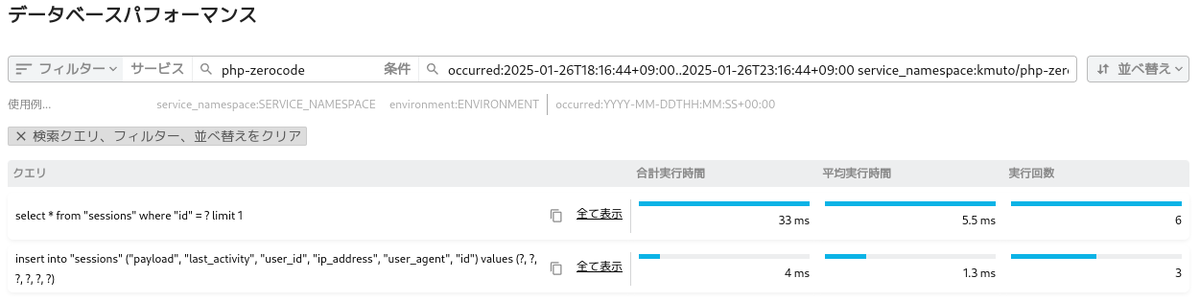

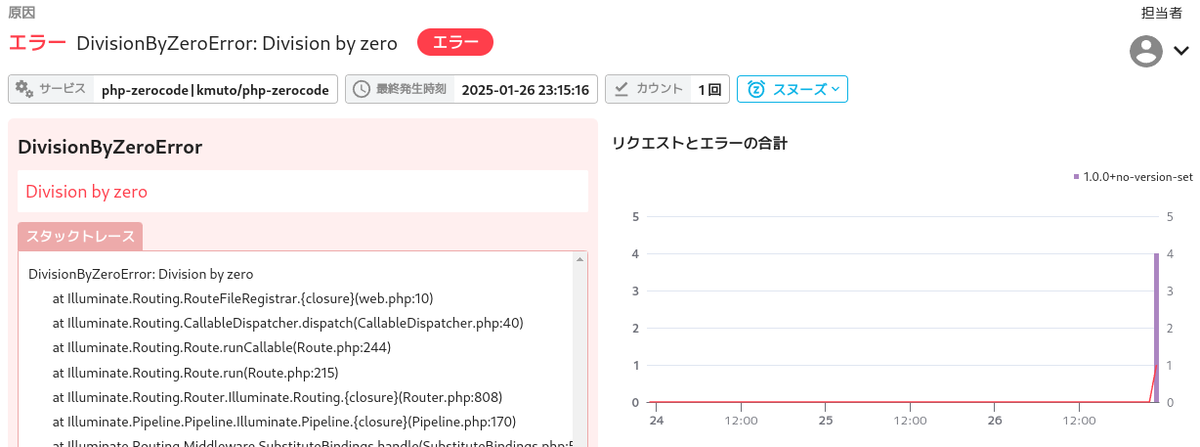

せっかくなので、Mackerelでもどう見えるのか送ってみよう。

OpenTelemetry Collectorの設定を変更。

...

processors:
  resource/namespace:
    attributes:
    - key: service.namespace
      value: "kmuto/php-zerocode"
      action: upsert

  batch:
    send_batch_size: 5000
    send_batch_max_size: 5000

exporters:
  debug:
    verbosity: detailed
  otlphttp/vaxila:
    endpoint: "https://otlp-vaxila.mackerelio.com"
    headers:
      Accept: "*/*"
      "Mackerel-Api-Key": ${env:MACKEREL_APIKEY}

service:
  ...
    traces:
      receivers: [otlp]
      processors: [resource/namespace, batch]
      exporters: [debug, otlphttp/vaxila]
  ...

いいじゃん。



以上の内容はhttps://kmuto.hatenablog.com/entry/2025/01/27/095000より取得しました。
このページはhttp://font.textar.tv/のウェブフォントを使用してます
不具合報告/要望等はこちらへお願いします。
モバイルやる夫Viewer Ver0.14
